60A MPPT Solar Charge Controller – 12V/24V/36V/48V Auto Regulator with RS485

Maximize your solar energy efficiency with this 60A MPPT Solar Charge Controller, designed to optimize power conversion and battery charging. Featuring RS485 communication, it allows real-time monitoring and system adjustments. The auto voltage identification (12V/24V/36V/48V) ensures compatibility with various battery types, making it ideal for off-grid solar systems, RVs, homes, and commercial setups. With MPPT technology, it achieves up to 99% tracking efficiency, boosting solar panel performance.

This high-efficiency solar regulator comes with overcharge, over-discharge, short-circuit, and reverse polarity protection, ensuring a safe and reliable solar power system. Its intelligent temperature control enhances durability, making it perfect for solar power management in any environment.

Package List:

1 * Controller 1 * Temperature sensing wire 1 * Screwdriver 1 * Instruction

Features:

1、Efficient MPPT Solar Charge Controller: Solar charge controller with MPPT efficiency is not less than 99.5%, and the conversion efficiency of the whole is as high as 98%. 60amp Rate Charging current. 2、RS485 Communication: Provide communication protocol to facilitate unified integrated management and secondary development. Supports host computer software monitoring and supports Wi-Fi module expansion to realize app cloud monitoring. 3、Easy to Use: With high definition LCD display, you can view equipment operating data and working status, and can support the modification of controller display parameters. Detailed instruction available. 4、Wide Range Solar Voltage/Power Support: Automatic identification of battery voltage. Compatible with sealed, gel, flooded battery, and can customize parameters to charge other types of batteries. 5、4 Load modes: Support normally open/normally off mode, PV voltage mode, dual time period control mode, and PV + time control mode. 6、Safe Charging: 3 stage charging: constant current, constant voltage, float charging, which can effectively extend the life of the battery. Ultra low power supply chips to reduce static standby energy consumption and reduce energy loss at night. 7、Full Conservation: Support battery drop conservation, reverse connection conservation, overheating conservation, overload conservation, low voltage conservation and segmentation conservation. Designed with cooling fan and heat dissipation vents.

Specification:

Color: Red Material: Iron Voltage/Power Support: 12V: DC9V~DC15V , 780W 24V: DC18V~DC30V , 1560W 36V: DC32V~DC40V , 2340W 48V: DC42V~DC60V , 3120W No-load static loss: 0.5W~1.2W PV open circuit voltage (VOC): DC150V Start charging voltage point: 3V higher than battery voltage Input low voltage conservation pad: 2V higher than the current battery voltage Input overvoltage conservation point: DC150V Input overvoltage recovery point: DC145V Temperature compensation: -3mV/℃/2v (default) Output voltage regulation accuracy: ≤±1.5% Rated load current: 60A Working temperature: -20℃~+50℃ Storage temperature: -40℃~+75℃ IP(Ingress conservation): IP21 Noise: ≤40dB Altitude: 0~3000m Maximum connection size: 30mm² Size: 22 * 18 * 8.5cm / 8.7 * 7.1 * 3.3in Weight: 2.6kg / 91.7oz

Product Image:

[FAQS]

Question: What makes the 60A MPPT Solar Charge Controller more efficient than standard controllers? Answer: This controller utilizes Maximum Power Point Tracking (MPPT) technology, which achieves a tracking efficiency of at least 99.5%. Unlike standard PWM controllers, the 60A MPPT Solar Charge Controller optimizes the power conversion from your panels to your battery with up to 98% efficiency, ensuring you get the most energy possible out of your solar array.

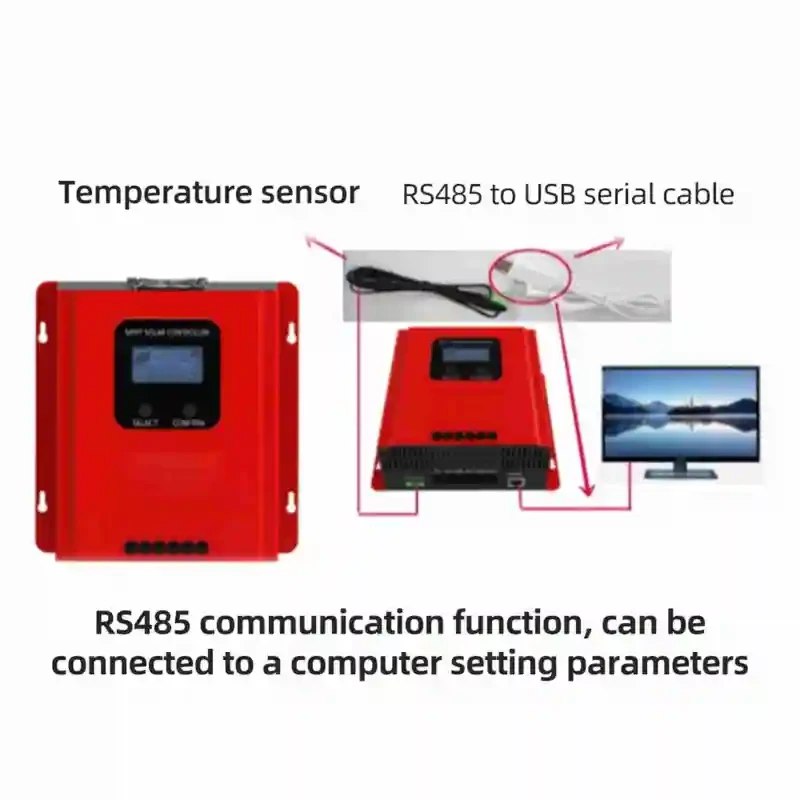

Question: Can I monitor my solar system remotely with this controller? Answer: Yes! The unit is equipped with RS485 communication. This allows for unified integrated management and secondary development. It supports host computer software monitoring and is compatible with Wi-Fi module expansion, enabling you to track your equipment’s operating data via app cloud monitoring.

Question: Does the controller work with different battery voltages automatically? Answer: Absolutely. It features automatic voltage identification for 12V, 24V, 36V, and 48V systems. Whether you have a small RV setup or a large home off-grid system, the controller detects the battery voltage and adjusts its parameters accordingly.

Question: What types of batteries can I charge with this device? Answer: The controller is compatible with a wide range of batteries, including Sealed, Gel, and Flooded types. Furthermore, you can customize the charging parameters to accommodate other battery types, ensuring versatile use for various solar power projects.

Question: How does the 3-stage charging system protect my battery life? Answer: To extend the life of your batteries, the controller employs a 3-stage charging cycle: Constant Current (Bulk), Constant Voltage (Absorption), and Float Charging. This intelligent process prevents overcharging and ensures the battery is maintained at its optimal health level.

Question: Is the controller protected against extreme weather and electrical faults? Answer: Yes, it is built with comprehensive protection features, including battery drop, reverse connection, overheating, overload, and low voltage conservation. It also features a cooling fan and heat dissipation vents to manage temperatures in working environments ranging from -20℃ to +50℃.

Question: What is the maximum solar input voltage (VOC) this controller can handle? Answer: The controller supports a PV open circuit voltage (VOC) of up to DC 150V. This high voltage ceiling allows you to wire multiple panels in series, which increases efficiency and reduces the thickness of the wiring required for your installation.

Question: What is included in the package? Answer: You will receive 1 x 60A MPPT Controller, 1 x Temperature sensing wire (for accurate thermal compensation), 1 x Screwdriver for terminal connections, and 1 x Detailed Instruction Manual.
