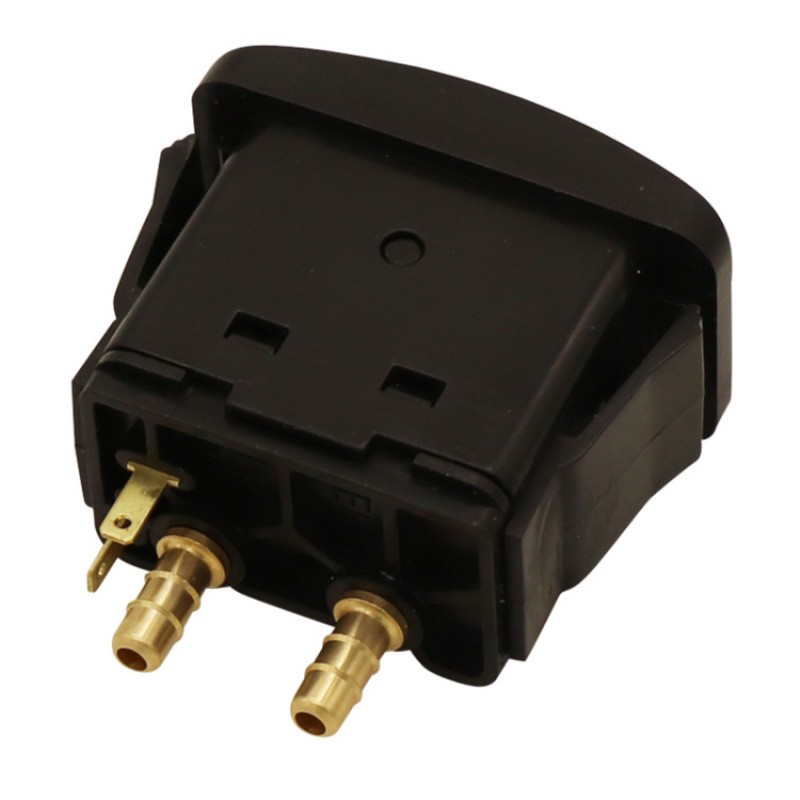

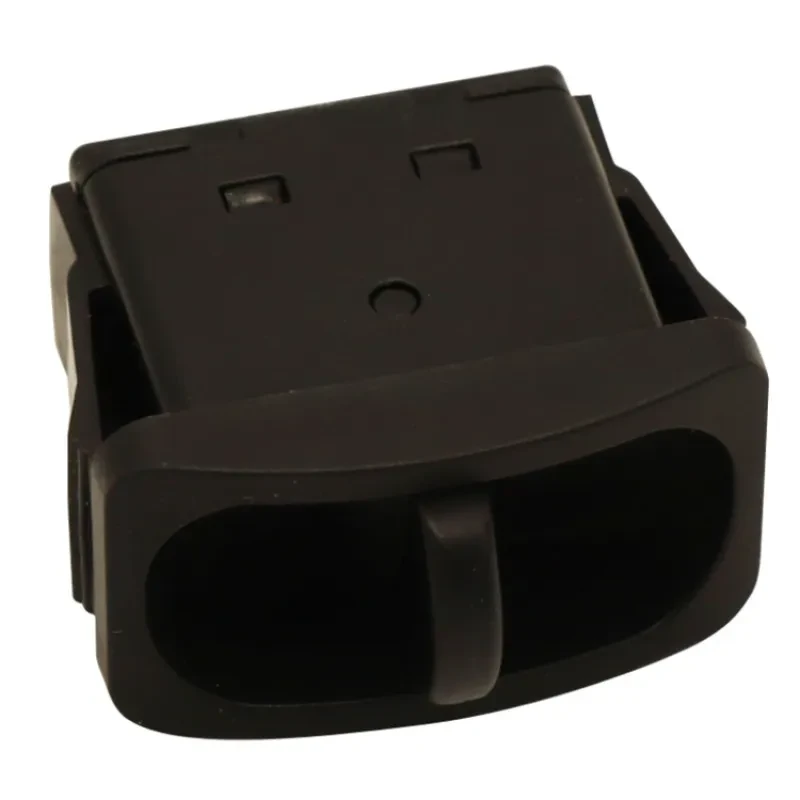

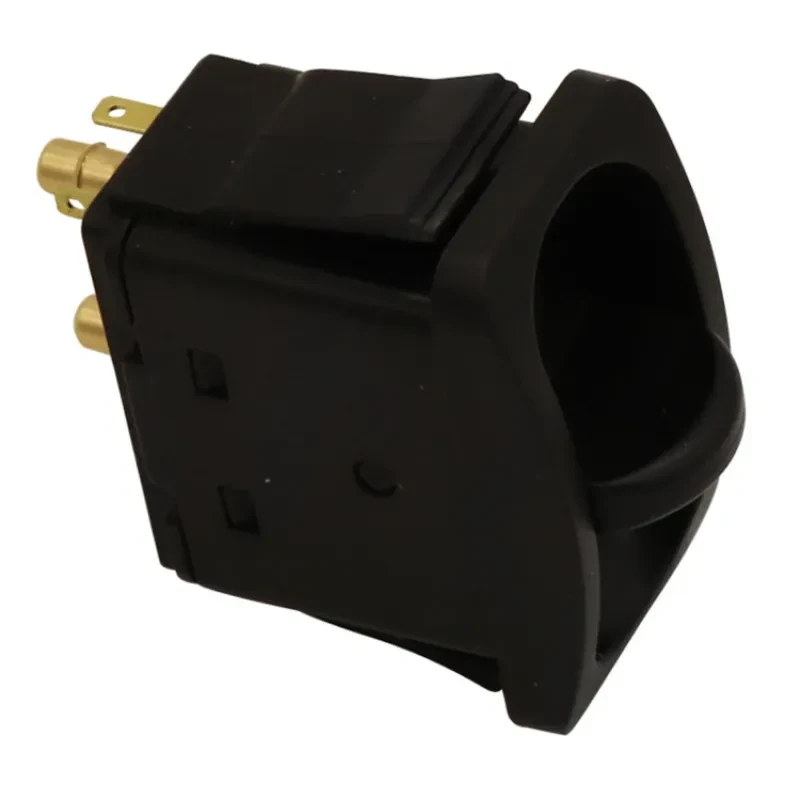

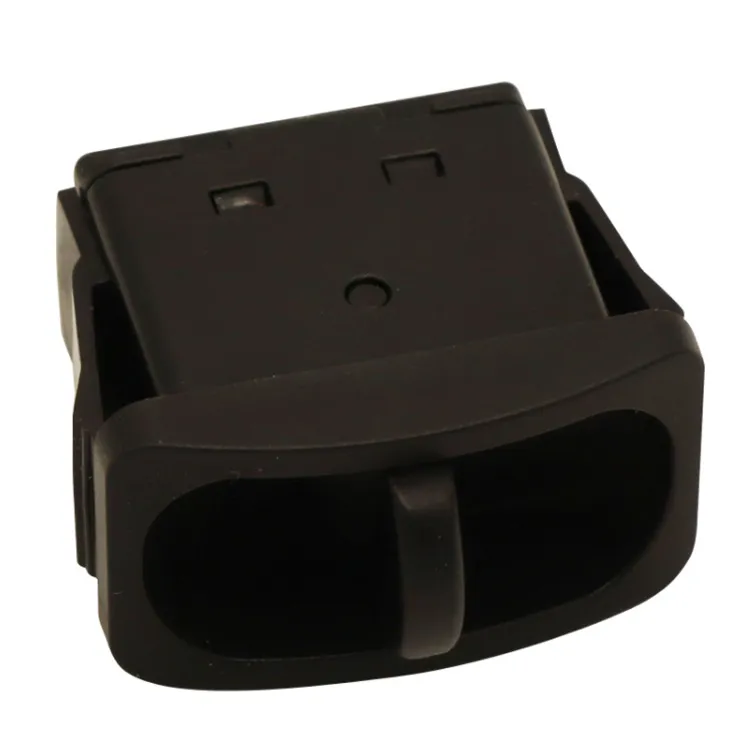

Air Suspension Seat Control Switch – Durable 24V/12V Pneumatic Unit

Air Suspension Seat Control Switch – Durable 24V/12V Pneumatic Unit

Upgrade your vehicle’s seating comfort with this Air Suspension Seat Control Switch, engineered for precision and durability. Designed for airbag shock absorption seats, it provides reliable pneumatic and electronic control using either 12V or 24V power input.

Built with a compact plastic housing (41mm × 22.5mm) and equipped with a paddle-style electronic valve switch, this unit offers a three-position, three-way configuration with a middle seal for optimal airflow management. It supports up to 1.5Mpa air pressure resistance, ensuring consistent seat performance under demanding conditions.

With less than 10ml/min air leakage and tested for over 10,000 cycles, this control switch guarantees long service life and dependable operation. Ideal for heavy trucks, industrial vehicles, and air suspension seats, it is an essential component for maintaining driver comfort and seat stability.

Product information:

Type: Airbag Seat
Applicable models: Airbag shock absorption seat
Appearance size: 41mm*22.5mm
Fabric Material: Plastic
Applicable models: Airbag shock absorber seat

1. Installation interface size: 41mm long * 22.5mm wide
2. Air inlet switch joint: tube outer diameter 6mm, inner diameter 4mm
3. Terminal: 2PL

Feature description：
1. Paddle seat electronic air valve switch (using electric drive air compressor to provide pneumatic control and electric control for air seat)
2. Three-position three-way, middle seal, paddle switch
3. Air pressure resistance 1.5Mpa
4. Air leakage is less than 10ml/min
5. Action durable 10,000 times

Packing list:

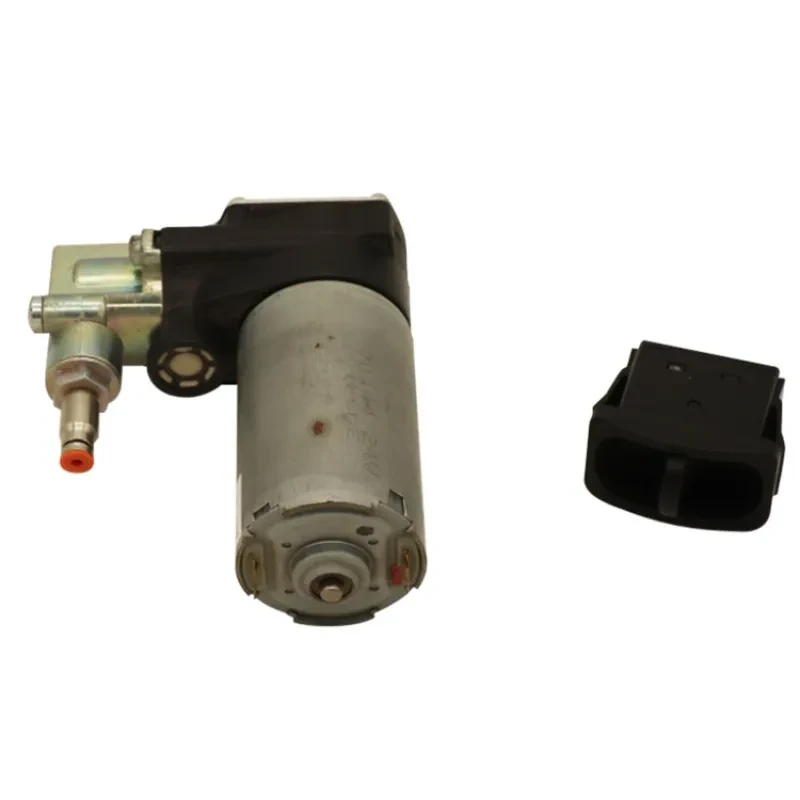

Air pump controller*1
