Automatic Electric Window Controller with Anti-Pinch Safety

Automatic Electric Window Controller with Anti-Pinch Safety

Upgrade your vehicle with this universal automatic electric safety window controller. Compatible with most 4-window models, it allows your windows to close automatically with a single press of the remote lock button. Intelligent anti-pinch detection ensures safe operation, preventing accidents while maintaining smooth and efficient window control.

This controller supports diversified closing modes, including positive or negative trigger selection, and features an intelligent secondary lift function to ensure each window closes properly. For vehicles equipped with sunroofs, the optional negative trigger output allows for controlled closure within 20 seconds. With working voltage from DC10V-15V and load current up to 15A, it provides reliable performance under varying conditions.

Installation is straightforward for vehicles with direct motor control (switch directly controls the window motor), allowing flexible wiring according to your car’s configuration. Ideal for drivers seeking enhanced safety, convenience, and modern functionality, this automatic window controller ensures a fully secure and smart vehicle experience.

Material: ABS

Features:

1: Applicable to all 4-window models (no ACC power supply to computer models for rising windows)

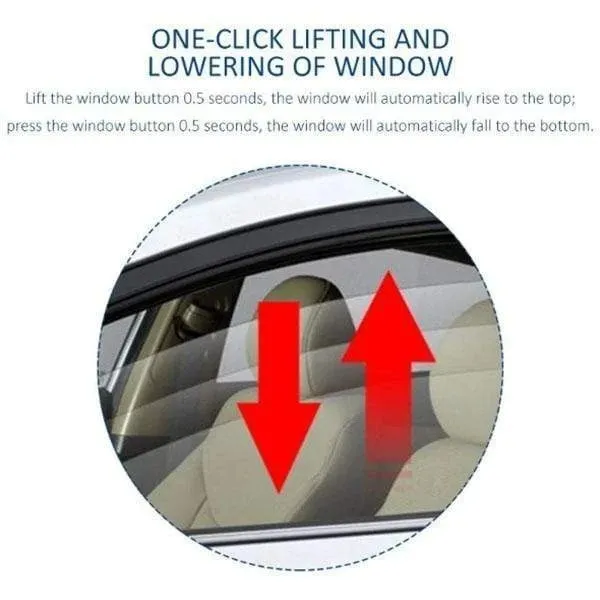

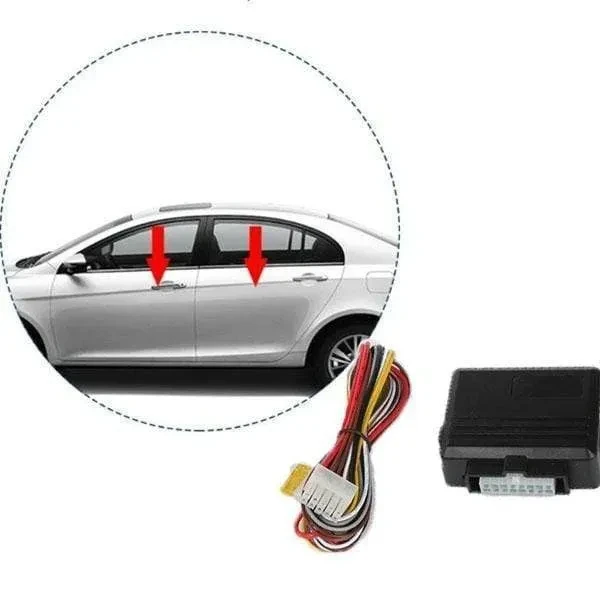

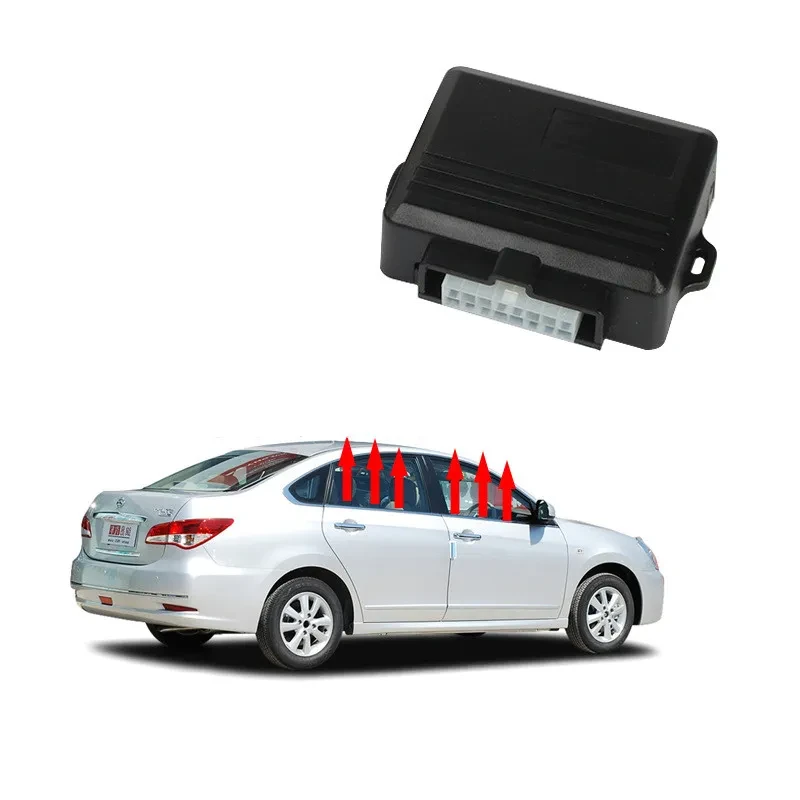

2: Press the remote control lock button, the window glass will automatically close the windows one by one
3: Intelligent and independent anti-pinch detection and lift window control circuit

4: Intelligent secondary window lift function to ensure that each window is lifted in place

5: Diversified window-closing trigger modes (positive trigger or negative trigger can be selected)

6: Close the sunroof function, output a negative trigger signal to control the duration of 20 seconds (optional function)
One: Basic parameters:
1: Working voltage: DC10V-15V
2: Quiescent current: ≤6mA.
3: Load current: ≤15A.
Two: Operating instructions:
A "This product is suitable for models with electric lift windows. Users can choose two windows or four windows according to actual needs.
B》After completing the action of engine flameout---getting off---locking the door, the product can automatically close all the windows in sequence.
C "The control circuit part of this product can select the positive/negative trigger function according to the control mode of the original car central control lock or anti-theft device.

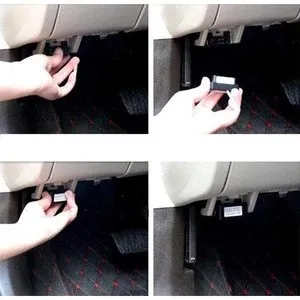

Three: Installation instructions:
1: There are various types of car window control methods on the market, but they can be roughly divided into the following two types:
(A): The switch directly controls the motor to raise or lower the power window; (direct control method)
(B): The indirect control method in which the switch controls the lifting relay, and then the motor is controlled by the lifting relay; (indirect control method)
2: This product belongs to the former item A, which directly controls the motor part. Therefore, the installation technician must deal with it flexibly according to the actual situation and use the output wiring flexibly depending on the vehicle type.
