DC Motor Governor 5V-35V – PWM Speed Controller 5A with Switch

DC Motor Governor 5V-35V – PWM Speed Controller 5A with Switch

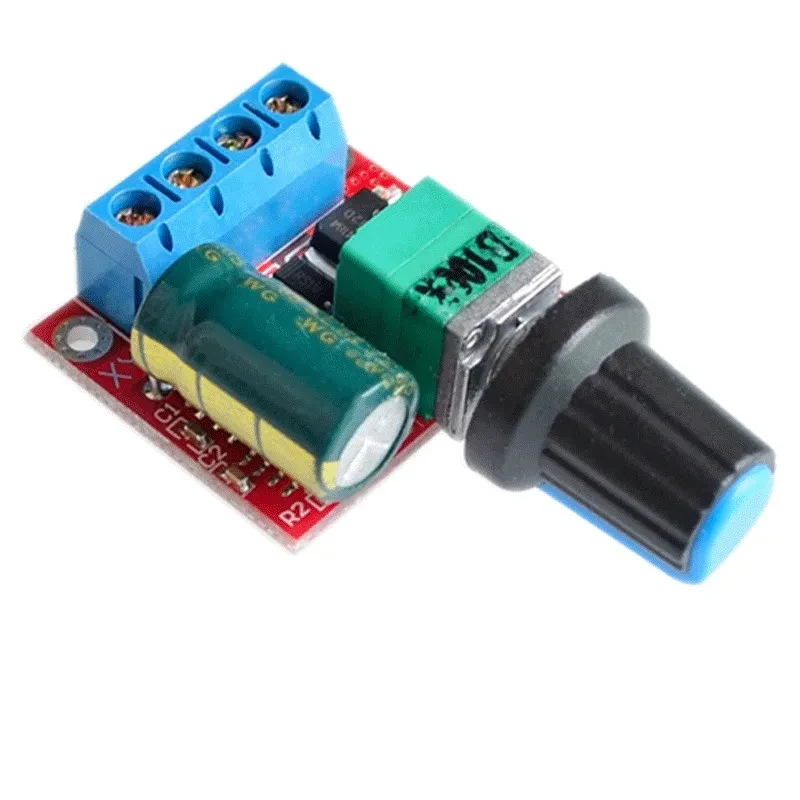

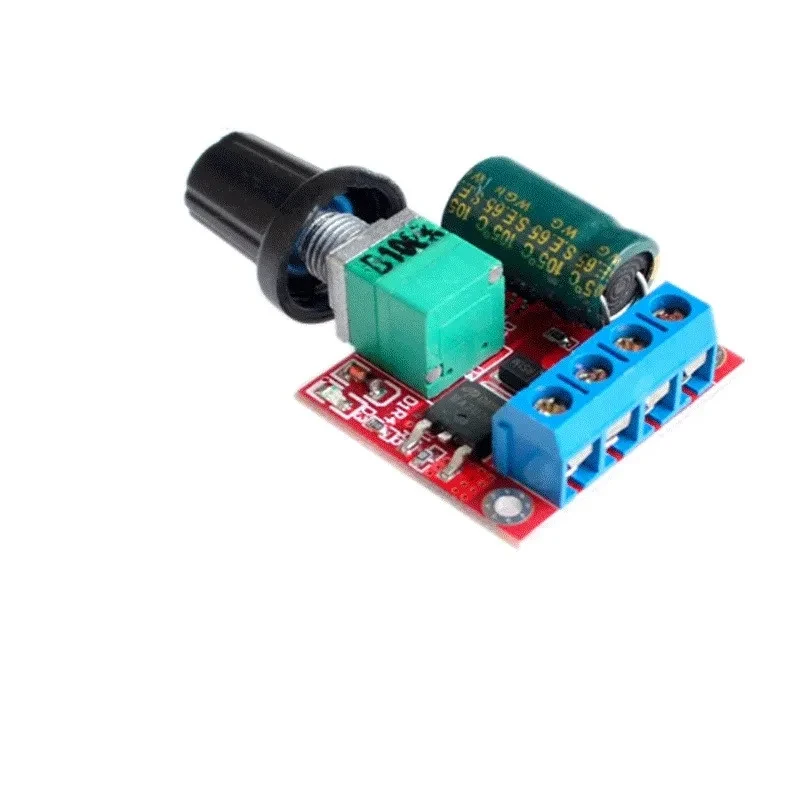

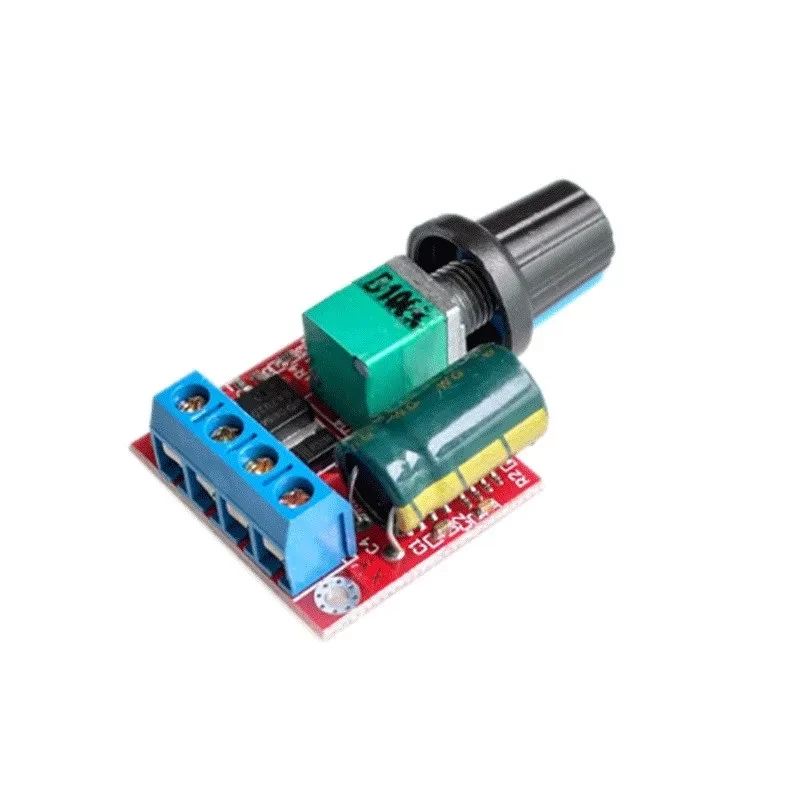

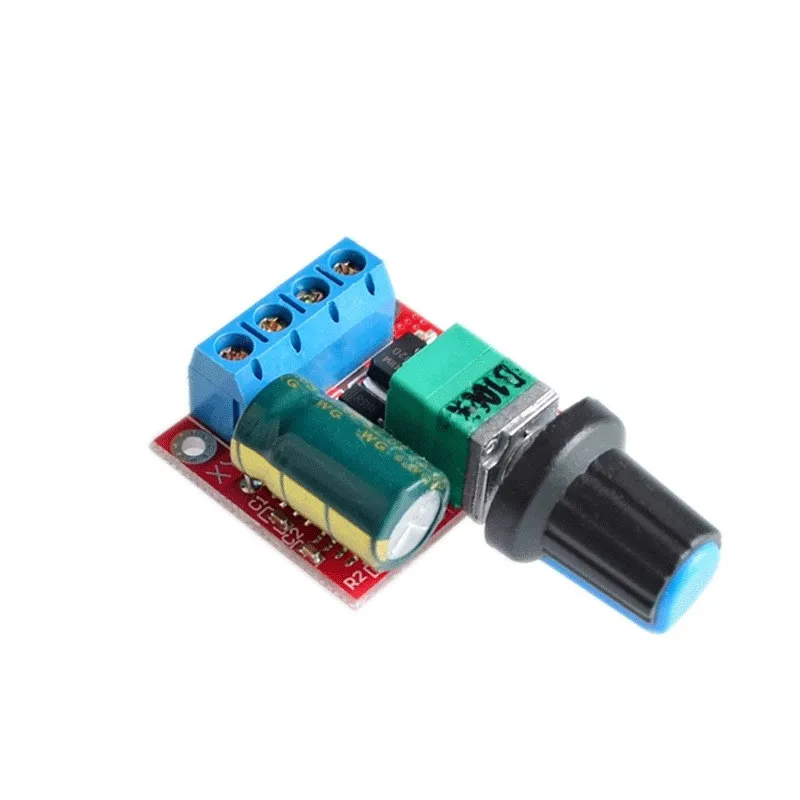

The DC Motor Governor 5V-35V Speed Controller is a compact and reliable PWM motor driver designed for precise speed regulation. Built with a wide operating voltage range of DC4.5V–35V and an output current up to 5A, it ensures stable performance for small and medium-sized DC motors.

With a PWM frequency of 20kHz and a duty cycle adjustable from 1% to 100%, this governor delivers smooth and efficient motor control. The onboard potentiometer knob allows quick and easy adjustment, while its static standby current of only 7µA ensures energy efficiency.

Lightweight and compact (30mm x 26mm x 14mm), this motor governor is ideal for DIY electronics, robotics, RC projects, and small motor-driven devices. Equipped with a built-in switch function, it offers both convenience and precision for your motor control needs.

Product information:

Model: PWM DC motor governor
Operating voltage: DC4.5V-35V
Output current: 0-5A
Output power: 90W()
Static current: 7u A (standby state)
PWM duty cycle: 1%-
PWM frequency: 20khz
Dimensions: L 30MMx W 26MM (excluding handle) x H 14MM

Note:
Dc motor governor input is direct current, not directly connected to AC (for example: household 220V AC), otherwise it will burn out!!!

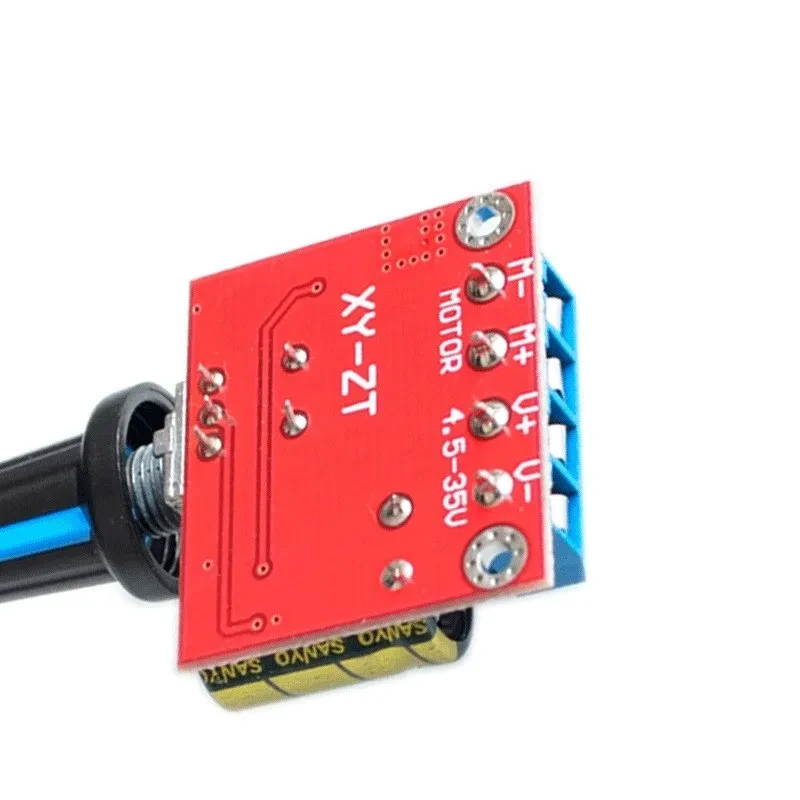

Do not reverse connect the positive and negative terminals of DC power supply, otherwise the governor may be damaged.
The motor can not be positive or negative, and can change direction by adjusting the line sequence when the running direction is not consistent with the expectation.
Adjusting potentiometer knob can change the governor output duty ratio, motor speed change.

Packing list:

1*governor
