HC-SR04 Ultrasonic Sensor Module for Distance Measurement

HC-SR04 Ultrasonic Distance Sensor – Ranging Module for Arduino & DIY

The HC-SR04 Ultrasonic Sensor is a versatile and high-precision electronic component designed to measure distances using sound waves, much like how bats navigate. This module is a staple for hobbyists and engineers working with Arduino or Raspberry Pi because it provides a non-contact ranging solution that is both reliable and cost-effective. The HC-SR04 Ultrasonic Sensor uses a high-frequency ultrasonic burst to calculate the time it takes for a signal to bounce off an object and return to the receiver. With a detection range spanning from 2cm to 510cm, this module is perfect for building obstacle-avoidance robots, liquid level monitors, or automated garage parking assistants.

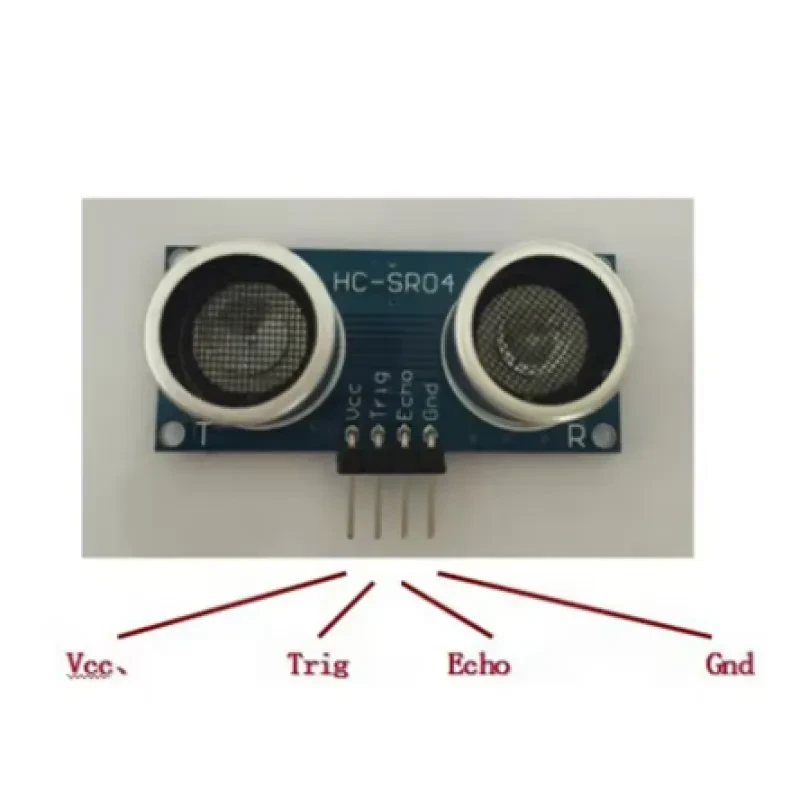

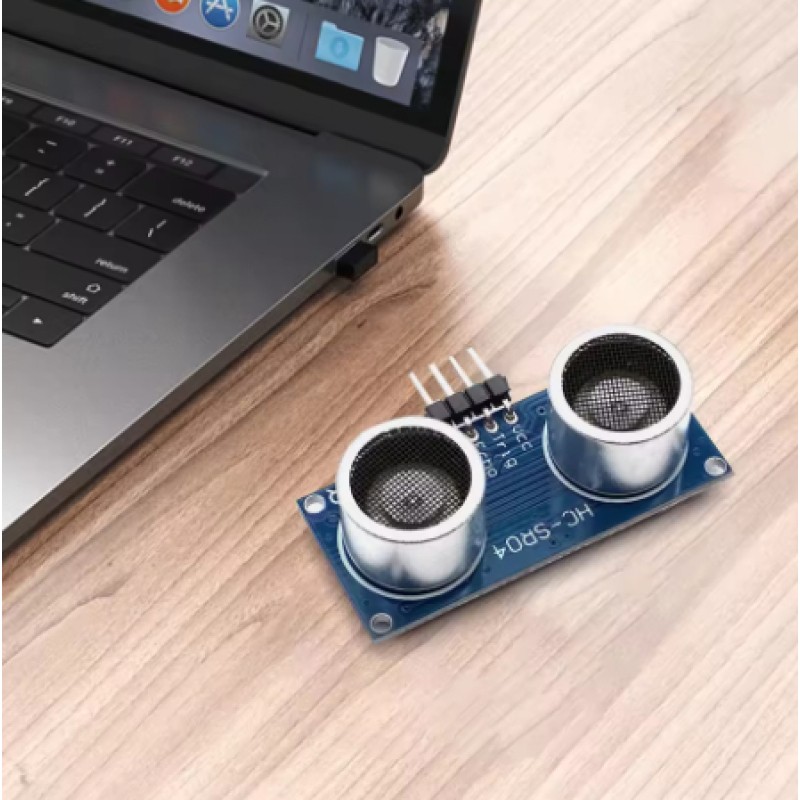

Designed for seamless integration, the HC-SR04 Ultrasonic Sensor operates on a standard DC 5V power supply, making it compatible with most microcontrollers. Its energy-efficient design draws less than 2mA of static current, ensuring your battery-powered projects run for longer periods. The module features a simple four-pin interface—VCC, Trig, Echo, and GND—which simplifies the wiring process for beginners. Whether you are an educator looking for a practical way to teach physics and coding or a professional developer prototyping a new automation system, this durable blue PCB sensor provides the accuracy and stability required for high-quality electronics projects.

Why the HC-SR04 Ultrasonic Sensor is Ideal for DIY Robotics

Navigation is the biggest challenge in mobile robotics, and the HC-SR04 Ultrasonic Sensor offers a simple "eye" for your machine. By mounting this sensor on a servo motor, a robot can scan its surroundings and decide which path is clear of obstacles. Unlike infrared sensors, which can be affected by sunlight or dark-colored surfaces, the HC-SR04 Ultrasonic Sensor relies on acoustics, making it much more consistent across various lighting conditions and object textures. It provides a stable level output (5V High and 0V Low) that is easy for any digital pin to read.

Precision Ranging and Narrow Sensing Angles

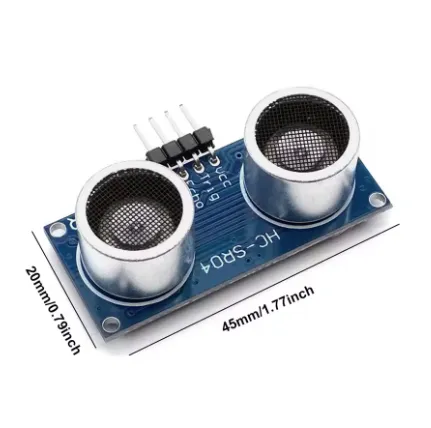

Accuracy is paramount in distance measurement, and the HC-SR04 Ultrasonic Sensor delivers a sensing angle of less than 15 degrees. This narrow field of view allows the sensor to focus on specific targets without being confused by side reflections from walls or other nearby objects. This precision makes the HC-SR04 Ultrasonic Sensor an excellent choice for measuring the depth of water tanks or bins where a wide-angle sensor might hit the sides of the container instead of the contents. Its compact 16cm-scale size ensures it can be tucked into small enclosures or onto the front of a drone.

Technical Specifications and Operating Parameters

Integrating the HC-SR04 Ultrasonic Sensor with Microcontrollers

To use the HC-SR04 Ultrasonic Sensor, you simply need to send a 10-microsecond pulse to the "Trig" pin. This triggers the module to send out an 8-cycle burst of ultrasound at 40 kHz. The "Echo" pin then goes high and stays high until the reflected sound is received. By measuring the duration the Echo pin remains high, you can calculate the distance using the speed of sound. This straightforward logic is why the HC-SR04 Ultrasonic Sensor has become the industry standard for entry-level distance sensing in the global maker community.

[BUYER_GUIDE]

When selecting a distance sensor for your project, the first thing to consider is the environment in which it will operate. Ultrasonic technology, such as that found in the HC-SR04 Ultrasonic Sensor, is exceptionally good at detecting solid objects regardless of their color or transparency. While optical sensors might struggle with a glass door or a clear acrylic sheet, the sound waves from an ultrasonic module will bounce right off, giving you an accurate reading. This makes it the superior choice for industrial automation or home security projects where you cannot always predict the material of the object being detected.

Accuracy versus range is the next trade-off to evaluate. The HC-SR04 Ultrasonic Sensor offers a massive 510cm range, which is significantly higher than many other budget sensors that cap out at 200cm or 300cm. However, it is important to understand that as the distance increases, the sound wave spreads out. This is where the 15-degree sensing angle becomes a benefit; it keeps the "beam" relatively tight. If you are measuring long distances, ensure there are no large objects within that 15-degree cone that could cause a premature reflection. For the most stable readings at maximum range, we recommend taking multiple samples in your code and using a median filter to smooth out any outliers.

Power management is a critical factor for anyone building battery-operated devices like remote weather stations or mobile robots. The HC-SR04 Ultrasonic Sensor is remarkably efficient, consuming less than 2mA when it is not actively "pinging." This allows you to keep the sensor connected to your power rail without worrying about draining your LiPo or AA batteries. When you do trigger a measurement, the power spike is brief. For advanced users, you can even put your microcontroller into a sleep state and use the Echo pin's transition as a "wake-up" interrupt, further extending the battery life of your smart device.

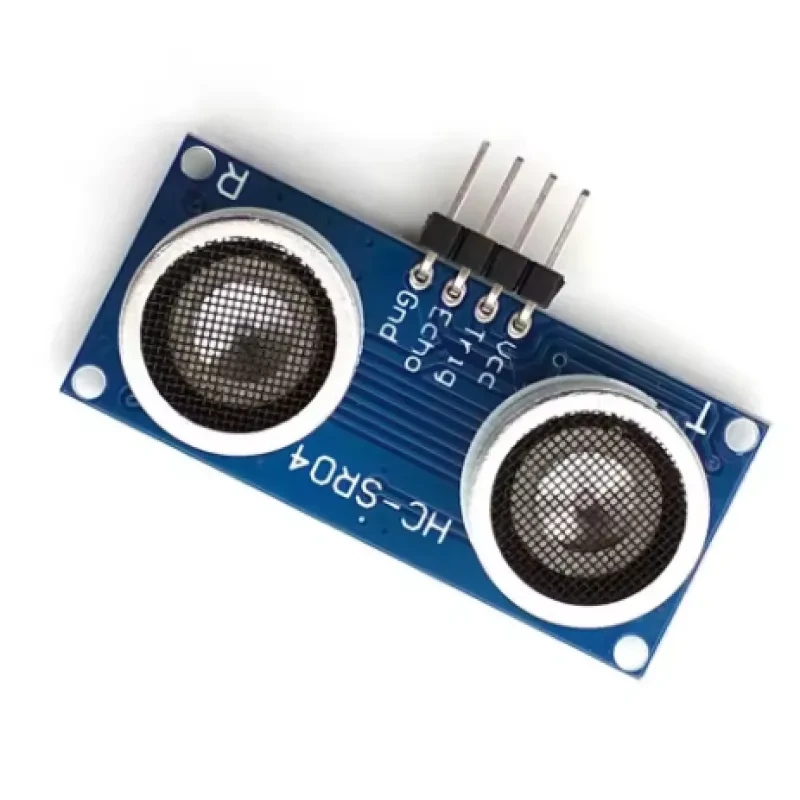

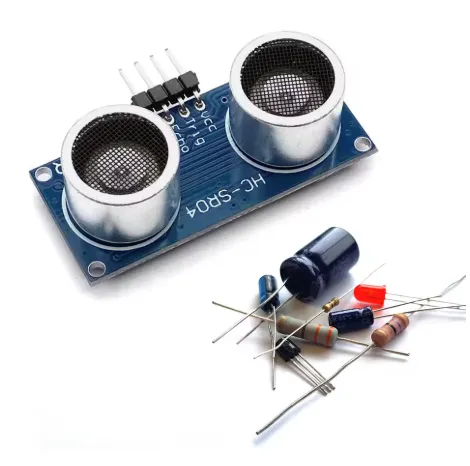

Durability and form factor are often overlooked until you start the physical assembly. The HC-SR04 is built on a sturdy fiberglass PCB that can handle the vibrations of a moving robot or the minor impacts of being mounted on a bumper. The two "eyes" (the transmitter and receiver) are securely soldered and shielded in metal housings. When mounting the HC-SR04 Ultrasonic Sensor, it is best to use a dedicated bracket or a small amount of foam tape behind the PCB. Avoid putting pressure directly on the metal cylinders, as this can affect the acoustic performance. Its standardized pin spacing also means it fits perfectly into breadboards for prototyping or female header pins for permanent installations.

Finally, think about the community and resource support. Because the HC-SR04 is the most popular ultrasonic sensor in the world, there are thousands of free libraries, tutorials, and "copy-paste" code snippets available online for every programming language, from C++ and MicroPython to Scratch. If you run into a bug in your project, a quick search will almost certainly provide the solution. This massive ecosystem makes the HC-SR04 Ultrasonic Sensor not just a piece of hardware, but a gateway into the broader world of embedded systems and robotics.

[FAQS]

Q: Does the HC-SR04 Ultrasonic Sensor work in total darkness?

A: Yes, absolutely. Since the HC-SR04 Ultrasonic Sensor uses sound waves (ultrasound) rather than light, it performs perfectly in total darkness, smoke, or bright sunlight where optical sensors might fail.

Q: Can this sensor measure the distance to soft objects like curtains or sponges?

A: Soft, porous materials tend to absorb sound waves rather than reflect them. For the HC-SR04 Ultrasonic Sensor to work accurately, the target should be a relatively hard surface that can bounce the sound back to the receiver.

Q: Is the HC-SR04 Ultrasonic Sensor waterproof?

A: No, this specific model is not waterproof. The open mesh on the transmitter and receiver can be damaged by moisture. For outdoor applications where rain is a factor, you should look for the "JSN-SR04T" which is a waterproof variant of this technology.

Q: What is the minimum distance the sensor can detect?

A: The HC-SR04 Ultrasonic Sensor has a "blind zone" of about 2cm. Anything closer than 2cm will not give an accurate reading because the sound returns before the sensor is ready to listen for the echo.

Q: Can I use multiple HC-SR04 sensors on one Arduino?

A: Yes, you can. You will just need to use two digital pins (one for Trig, one for Echo) for each HC-SR04 Ultrasonic Sensor you add. In your code, make sure to trigger them one after another to prevent their sound waves from interfering with each other.

Q: What happens if there is no object within 510cm?

A: If no reflection is detected within the timeout period, the HC-SR04 Ultrasonic Sensor will typically return a "0" or a very high value depending on the library you are using. You can handle this in your code to indicate "out of range."

Q: Does temperature affect the accuracy of the HC-SR04?

A: Yes, the speed of sound changes slightly with air temperature. For most DIY projects, this is negligible. However, for high-precision applications, you can add a temperature sensor and apply a correction formula to your distance calculation.

Q: Can I run the HC-SR04 Ultrasonic Sensor on 3.3V?

A: The standard HC-SR04 is designed for 5V. While some may work at lower voltages, the range and accuracy will be significantly reduced. If you are using a 3.3V controller like an ESP32, we recommend using a logic level shifter for the Echo pin.
