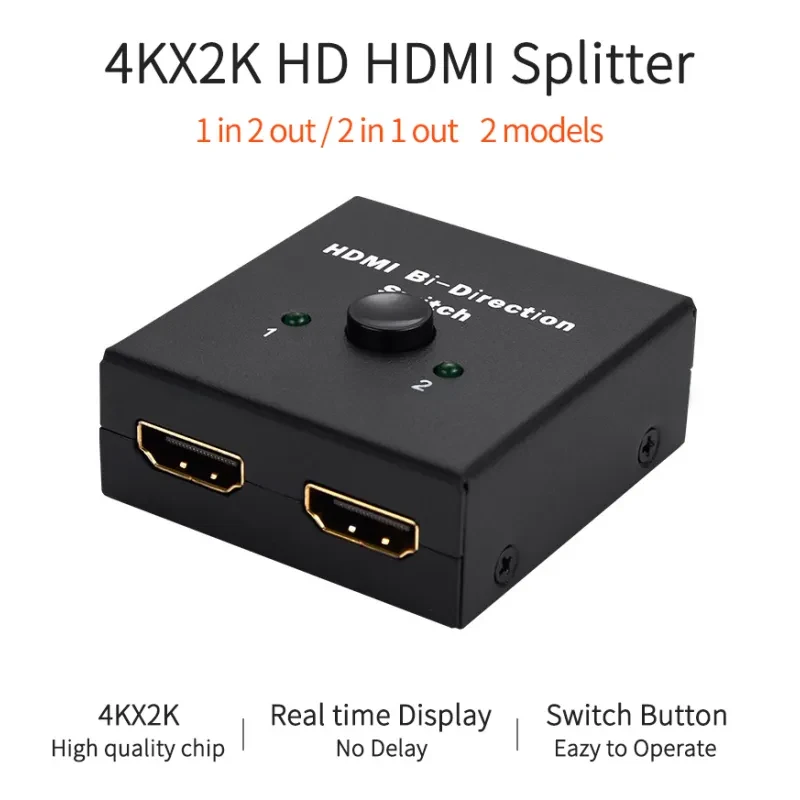

HDMI Bi-Directional Switch – 2 In 1 Out or 1 In 2 Out 4K Support

HDMI Bi-Directional Switch – 2 In 1 Out or 1 In 2 Out 4K Support

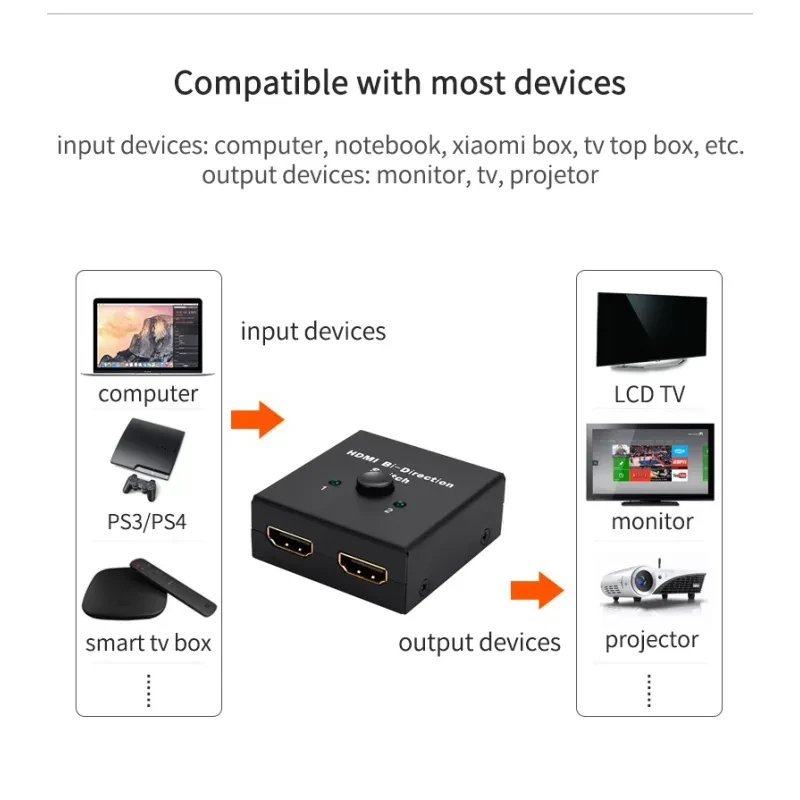

Simplify your media setup with this HDMI Bi-Directional Switch, designed to effortlessly switch between two HDMI input sources or output to two different displays (one at a time). Whether you're connecting a gaming console and a streaming device to a single monitor or toggling one source between a TV and projector, this compact device handles it all.

This 2-in-1-out or 1-in-2-out HDMI switch supports resolutions up to 4K UHD, ensuring crisp visuals and smooth transitions between devices. It's plug-and-play, requiring no external power—just connect your HDMI cables and you're ready to go. An integrated physical switch button allows easy manual switching between sources or outputs.

Engineered for safety and performance, it includes installation precautions to ensure proper cable placement, adequate ventilation, and stable positioning. With a durable build, gold-plated HDMI ports, and support for HDCP, this device is ideal for home theaters, gaming setups, offices, and classrooms.

Installation and Safety Precautions

1.Cables must be placed well, where it would not be stepped on or pinched. Make sure HDMI cables are fully inserted into ports.

2.To provide sufficient ventilation during use, make sure there is at least 1 inch of clearance on each side of the

device (except the side where it rests on a flat surface).

3.Do not set up this product adjacent to a water source or an environment that has excessive moisture.
4.Place this product on a flat surface and keep it out of reach of children.

Package Contents

1.HDMI Bi-Direction Switch x1

2.User Manual x1

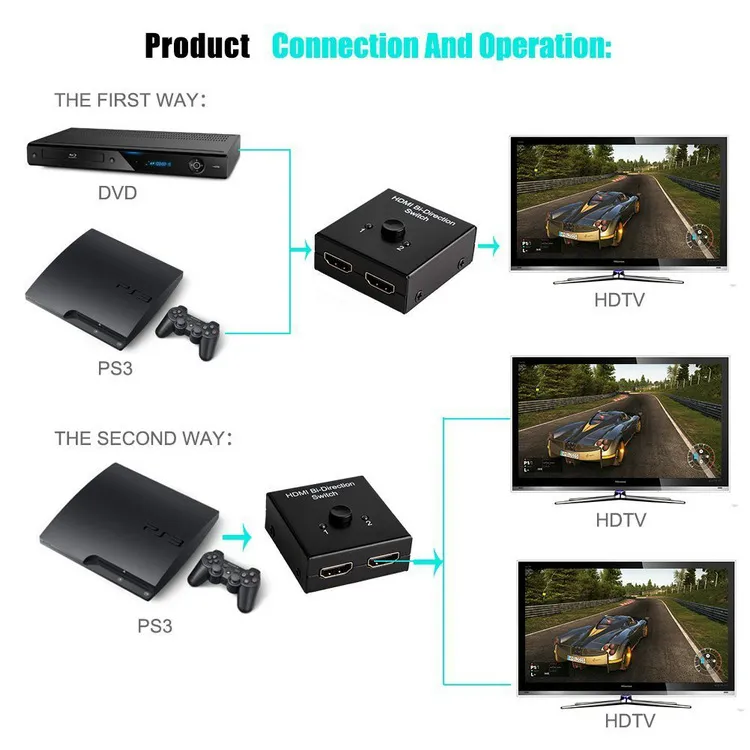

Schematic Diagram of Connection

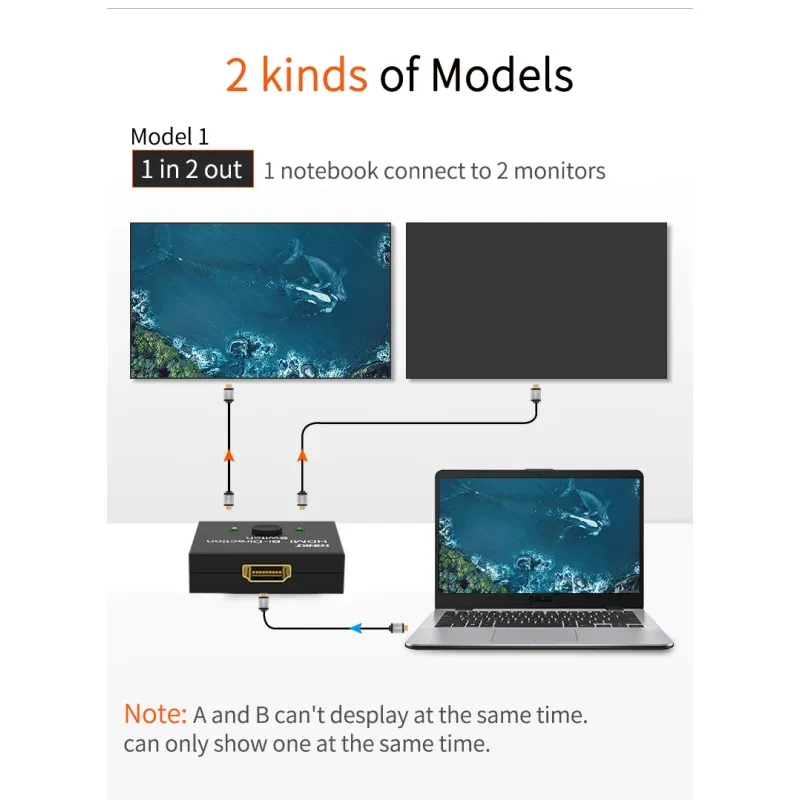

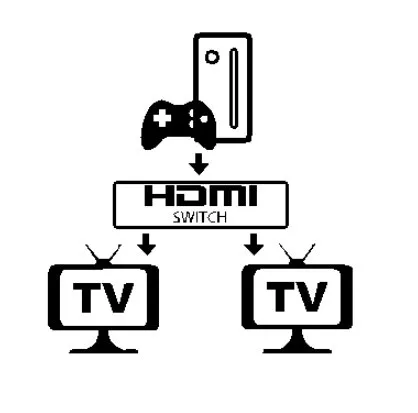

Example of 1 Input to 2 Outputs

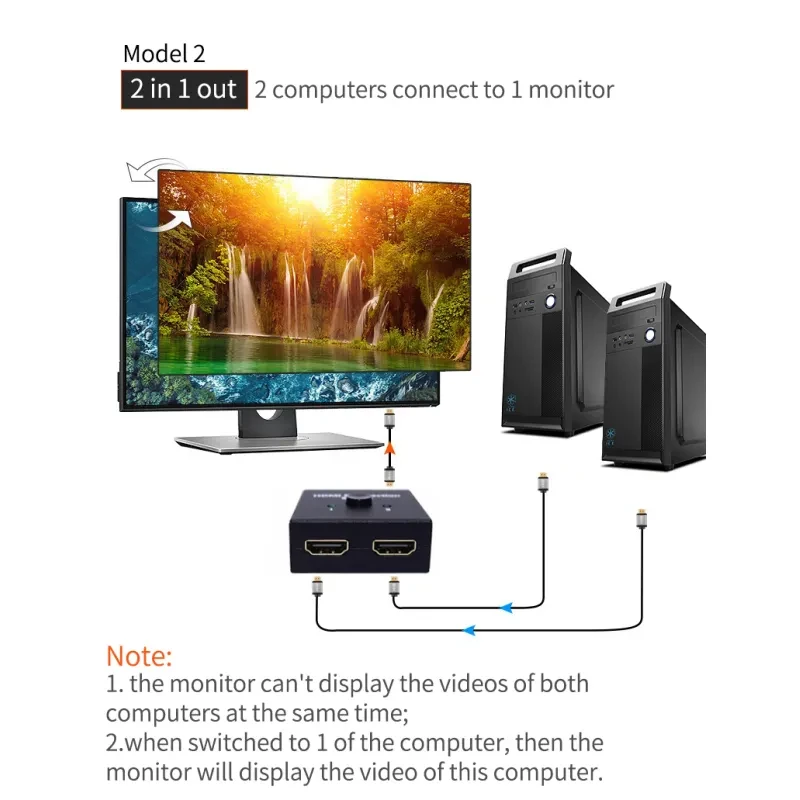

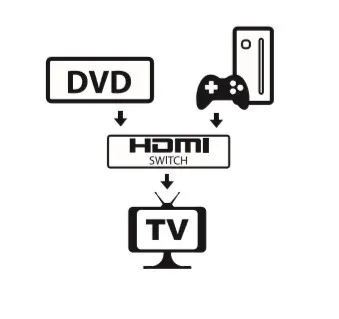

Example of 2 Inputs to 1 Outpu

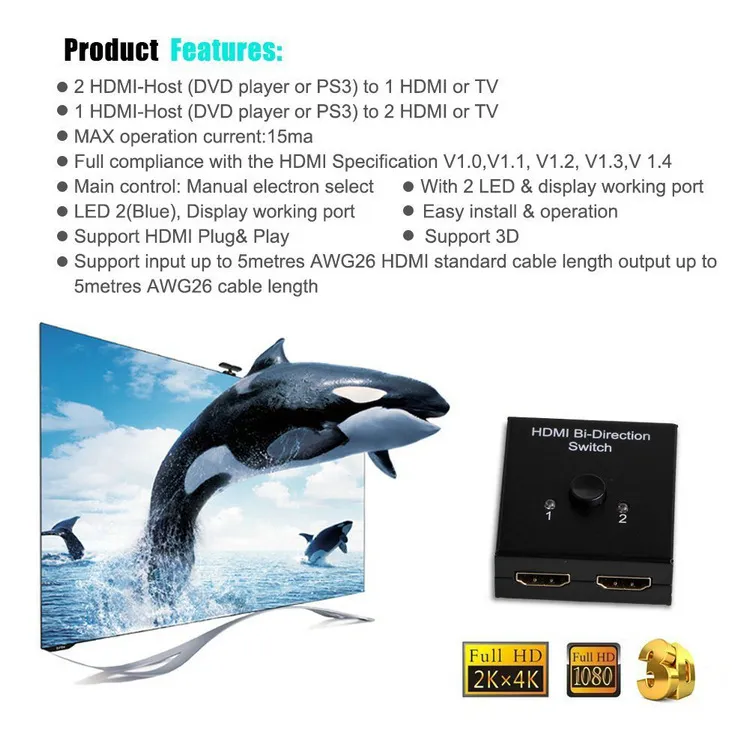

Features & Specification

*2 HDMI-Host (DVD Player or PS3) to 1 HDMI Monitor or TV

*1 HDMI-Host (DVD Player or PS3) to 2 HDMI Monitor or TV

*Power free

*MAX operation current:15ma

*Full compliance with the HDMI Specification V1.0,V1.1,V1.2,V1.3

*Main control: Manual electron select

*With 2 LED & display working port

*3 HDMI A/F connectors

*LED :  2 (Blue),Display working port

*Easy install & operation

*Support HDMI Plug & Play

*Support HDMI 1920 * 1080P * 60(MAX)

*Support MAX cable length:5m (total)

*Plug & Play

*Dimensions:42*50*25 mm(L,W, H)

* Weight:35g Housing: Plastic
