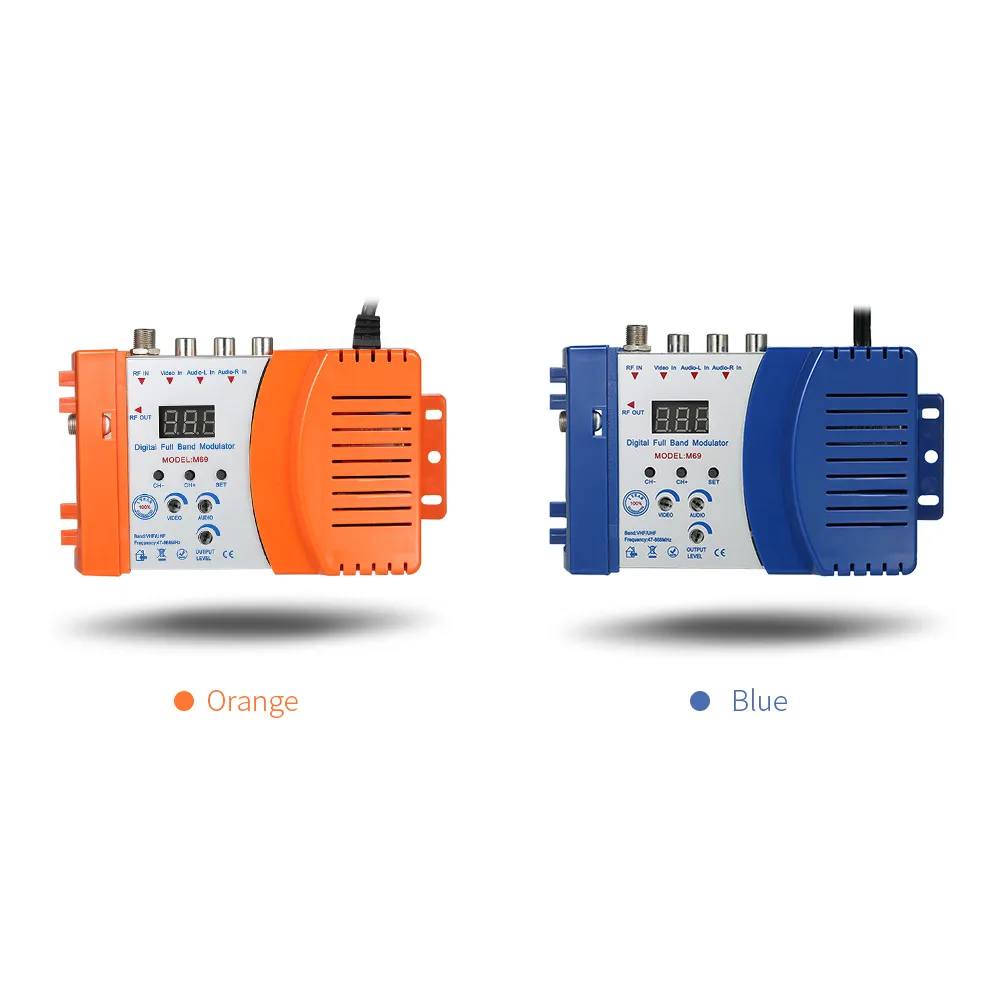

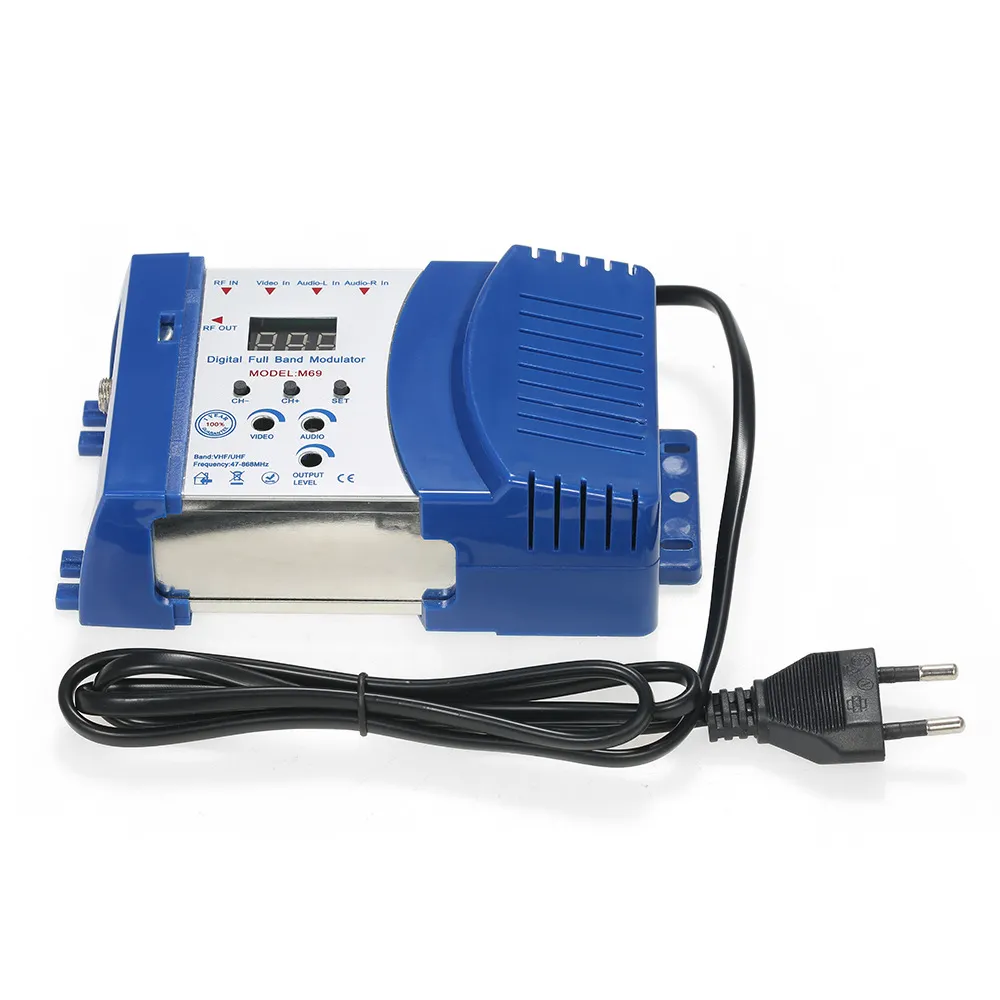

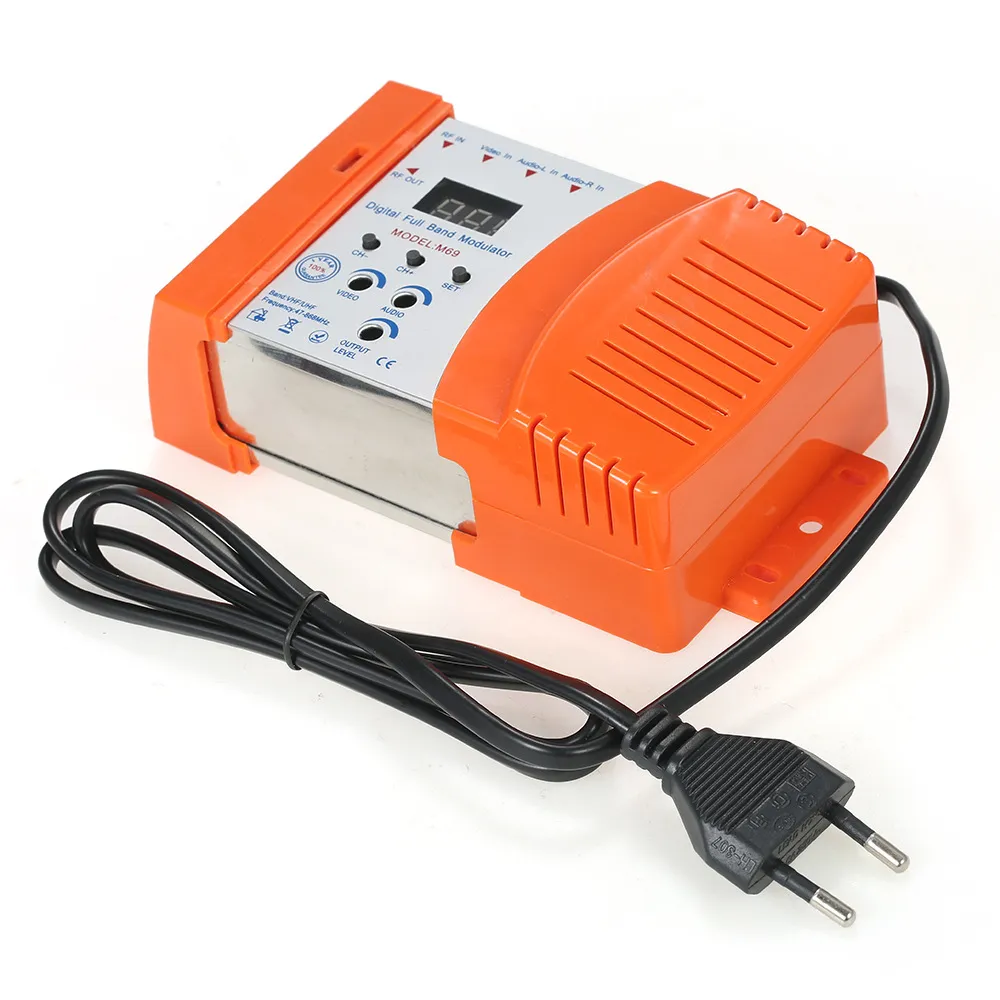

High-Performance Compact RF Modulator – Audio Video to TV Converter Box

High-Performance Compact RF Modulator – Audio Video to TV Converter Box

Easily convert your RCA audio and video signals to a coaxial RF output using this high-performance RF Modulator. Ideal for connecting DVD players, game consoles, CCTV systems, or older AV devices to standard TVs via RF input, especially useful in legacy setups.

⚙️ Key Features:

• Converts A/V signals to RF output for TV connectivity

• Wide frequency support: 47–868 MHz VHF/UHF range

• Selectable output level: 80–95 dBuV

• Supports multiple sound systems: M, B/G, I, D/K

• Universal compatibility with CATV systems

• Clear, stable transmission with low distortion

• Compact ABS housing; easy to install and operate


📐 Specifications:

• Material: ABS

• Input Power: AC 230V, 50Hz

• Max Power Consumption: 3W

• Output Impedance: 75 Ohm

• A/V Input Connector: RCA Female

• RF In/Out Connector: F Female

• Operating Temp: -10°C to +60°C (14°F–140°F)

• Unit Size: 15.5 × 8.6 × 5 cm

• Weight: 356g


📦 Package Includes:

• 1 × RF Modulator

• 1 × English User Manual

Features:
Humanized design, easy to install and operate.

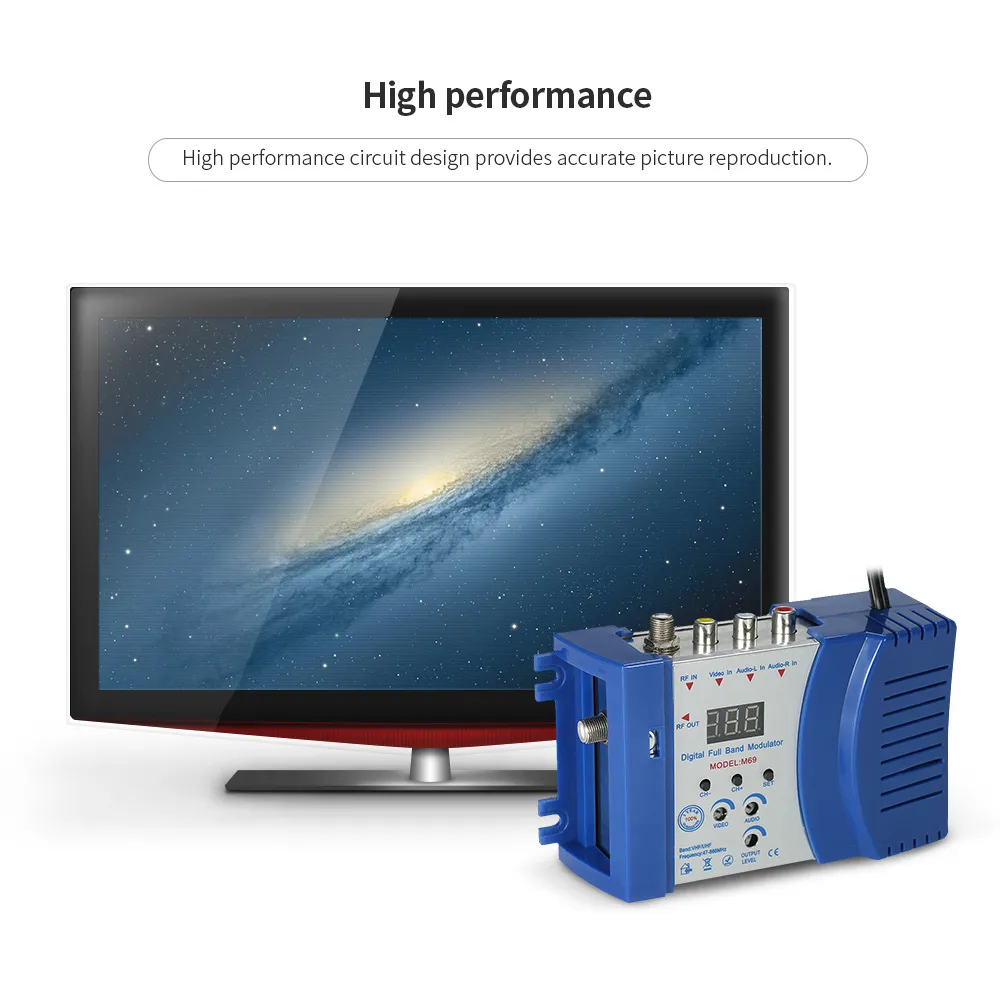

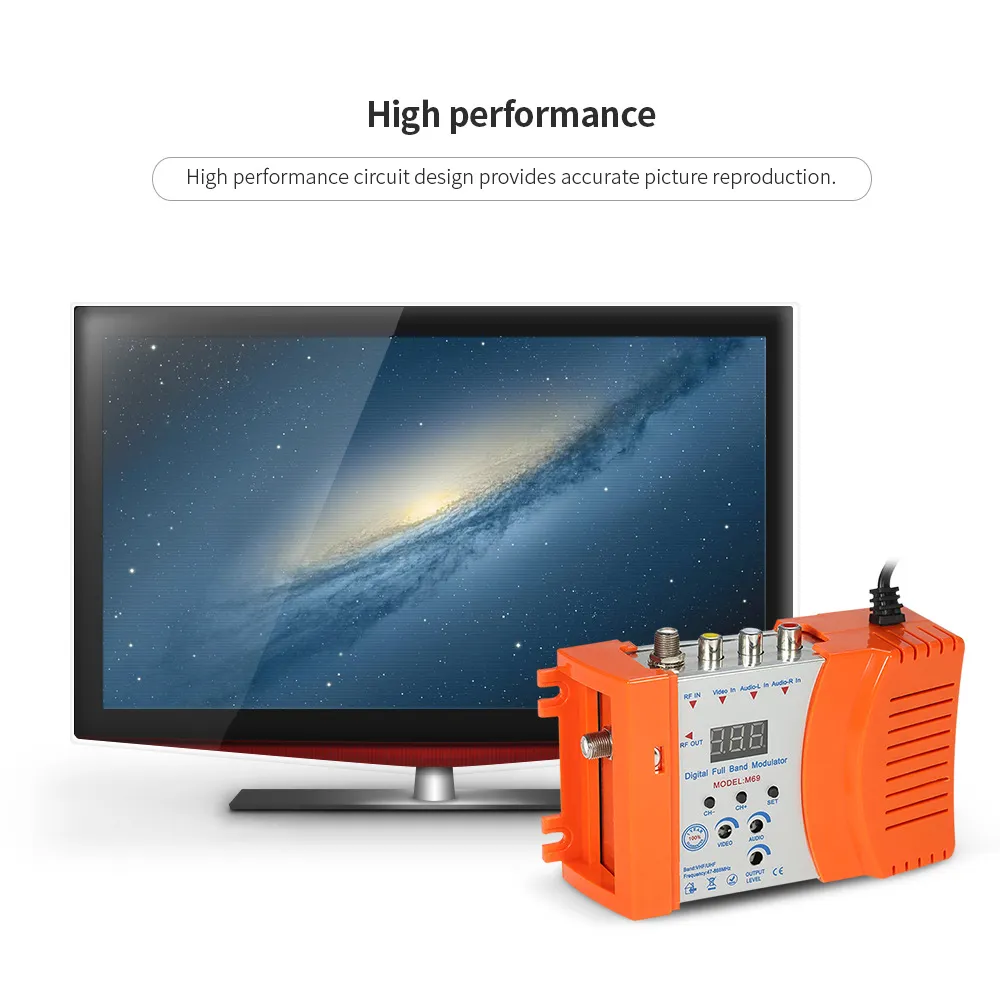

High performance circuit design provides accurate picture reproduction.
Can convert audio and video to RF via channel.
VHF / UHF operating frequency from 47 to 868 MHz.
With selectable output level of audio and video.
Compatible with all local CATV system.

Specifications:
Material: ABS
Input: AC230V, 50Hz
Max. Power: 3W
Frequency Range: 47-868MHz
Output Impedance: 750Hm
Output Level: 80-95dBuV
Input Level: 0.77Vp-p for 80%+/-10% modulation
Sound System: M=4.5MHz、B/G=5.5MHz、I=6.0MHz、D/K=6.5MHz
A/V connector: RCA Female
RF Input: F Female
RF Output: F Female
Operating Temperature: -10℃ ~+60℃ / 14℉~140℉
Item Size: Approx. 15.5 * 8.6 * 5cm / 6.1 * 3.4 * 2in
Item Weight: Approx. 356g / 12.6oz
Package Size: Approx. 16.5 * 10.8 * 5.5cm / 6.5 * 4.3 * 2.2in
Package Weight: Approx. 415g / 14.6oz

Package List:
1 * Modulator
1 * User Manual(English)
