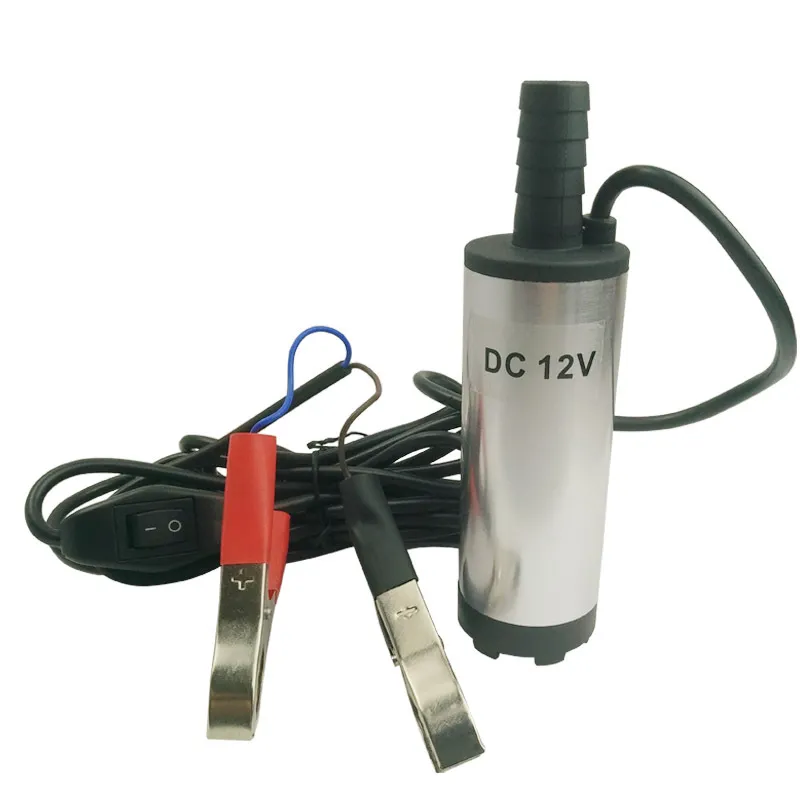

Mini Submersible Diesel Pump 12V 24V for Tractor and Equipment

Mini Submersible Diesel Pump 12V 24V for Tractor and Equipment

This mini submersible diesel pump is the perfect solution for efficient refueling of tractors, harvesters, agricultural equipment, and construction machinery. Operating on both 12V and 24V DC, it delivers stable performance and fast flow, making it ideal for vehicles and machines that can’t easily reach fuel stations. Compact, portable, and easy to carry, it’s designed for convenient use anywhere.

Built with a stainless steel shell and precision sealing, this pump resists rust, corrosion, and deformation, ensuring long-lasting durability. The fully sealed motor runs quietly and efficiently, drawing diesel or water at a flow rate of 12L/min with a lift head of 2 meters. The 3-meter power cable includes a midway switch for simple operation, and the bottom stainless steel filter keeps fuel clean and debris-free.

Lightweight yet powerful, this pump is easy to install and maintain. It’s suitable for field refueling and water transfer tasks, offering a practical, safe, and energy-efficient solution. For best results, operate intermittently (20 minutes on, 10–15 minutes rest). Includes a one-month warranty for peace of mind.

Technical parameters Voltage: 12V/24V (DC) 3.8 cm small

Power: 12v 1.5A Wire length: 3m

Flow: 12L/min Head: 2m

Outlet diameter: 1.6cm Speed: about 8500r/min:

Single package size: 12V/24V3.8 cm 161X88X53mm (white version)

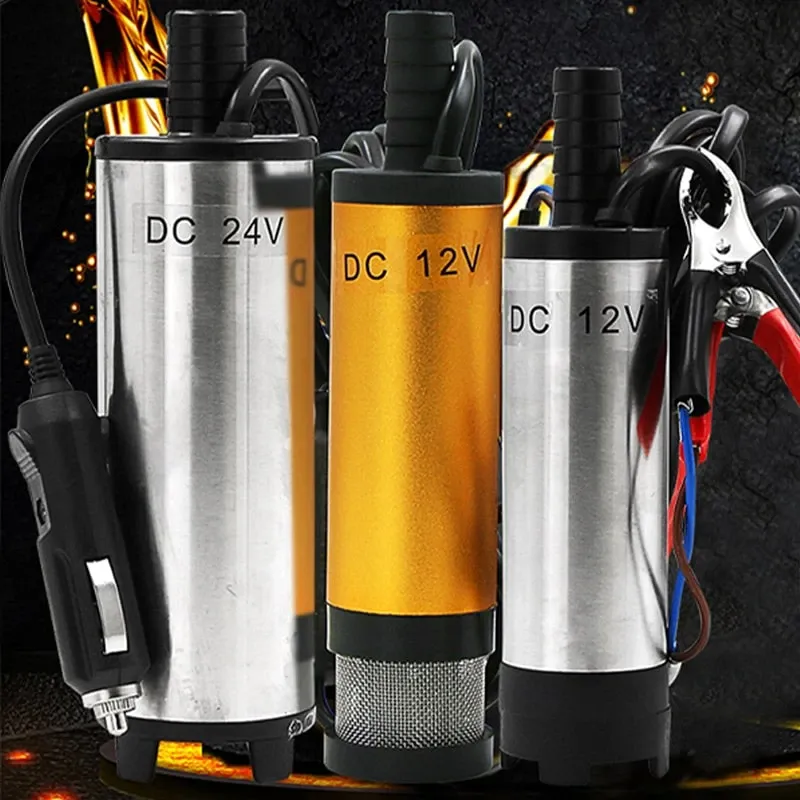

Box size: 180x90x50mm (gold style)

38mm clip box (40 pcs) packaging size: 45x34x22cm, about 14kg

Product introduction:

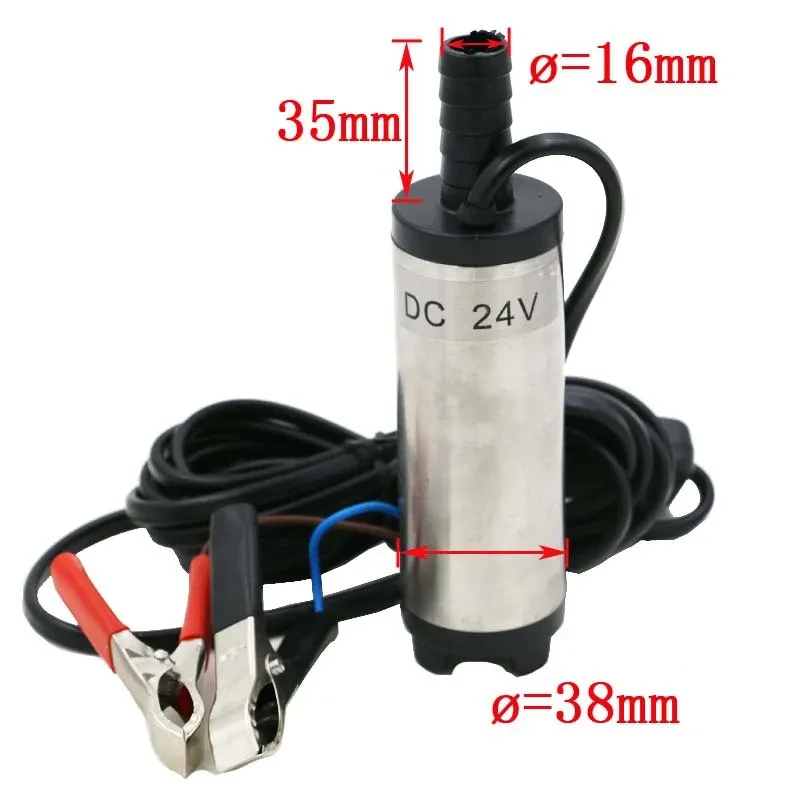

The 12V portable submersible diesel fuel pump has stable performance. Fully sealed device, insulated state. This product is small in size. Light weight, easy to install and carry. The wire is about 3 meters long, the diameter of the pump port is 16 mm, and the pipe is self-equipped.

It is suitable for vehicles that are inconvenient for refueling in field operations such as harvesters, large agricultural machinery, engineering machinery, and large wheeled tractors, and equipment and machinery that cannot reach the gas station for refueling.

1. This oil well pump adopts DC12V direct current motor, with low noise and fast speed.

2. The oil well pump has good sealing performance and adopts multiple seals to prevent leakage and prolong its service life.

3. The oil well pump adopts a stainless steel shell, which increases the thickness of the shell, makes the shell stronger, not easy to deform, and can effectively prevent the shell from rust and rot.

4. There is a stainless steel filter in the bottom filter of the oil well pump to make the pumped diesel oil (or water) cleaner. The bottom filter is equipped with a threaded interface, which is convenient for disassembly, maintenance and replacement. Can achieve the purpose of repeated use.

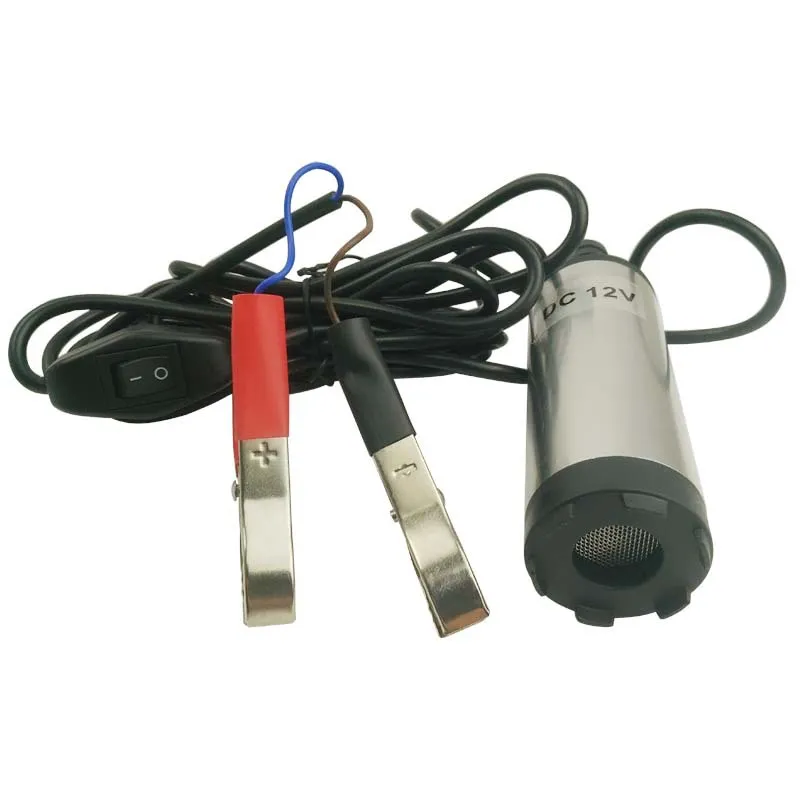

5. There is a midway switch on the power line of the oil pump for easy operation.

6. The oil output of this oil well pump is about 12L/min.

7. After the oil well is used, the oil well should be taken out of the oil (or water) in time.

8. When pumping oil, you should first connect the self-prepared oil outlet hose, and then put the oil well pump into clean oil (or water).

9. Self-prepared oil outlet hose.

Precautions:

1. It is strictly forbidden to pump flammable substances such as gasoline and alcohol! No-load operation and dry pumping are not allowed.
2. The oil well pump should work intermittently (that is, it should not be used for more than 20 minutes each time, and then continue to be used after stopping for 10-15 minutes). Note that it cannot work continuously for a long time.
3. Confirm whether the power supply voltage is consistent with the marked voltage of the oil pump, and the voltage tolerance is ±5%. Pay attention to the positive and negative poles.
About the warranty: one month warranty (that is, if there is a quality problem within one month, we will replace the pump with a new one, and the buyer only needs to bear the round-trip freight)

Suitable for: diesel water
