Morse Taper ER32 Collet Chuck Set | Milling Cutter Shank Tool Holder

Morse Taper ER32 Collet Chuck Set | Milling Cutter Shank Tool Holder

The Morse milling cutter shank with ER32 elastic chuck is a high-precision tool holder set designed for machining centers and professional milling applications. Made from 40Cr alloy steel, it offers exceptional strength, hardness (48–52 HRC), and long-lasting durability.

This set includes an ER32 collet set (1/8"–3/4" by 16th), crafted from high-quality spring steel with 0.0005 accuracy for maximum precision. Each collet is hardened and precision ground, ensuring stability and reliability during demanding machining operations.

The kit also comes with an MT3 shank ER32 collet chuck with draw bar threads (1/2 × 13) and an ER32 spanner for easy setup. Available in 11pcs or 15pcs tool holder sets, it is ideal for CNC machines, milling centers, and workshop professionals requiring accurate and efficient performance.

Product information:
Material: 40Cr
Applicable machine tool: machining center
Hardness: 48-52
Accuracy: 0.015mm

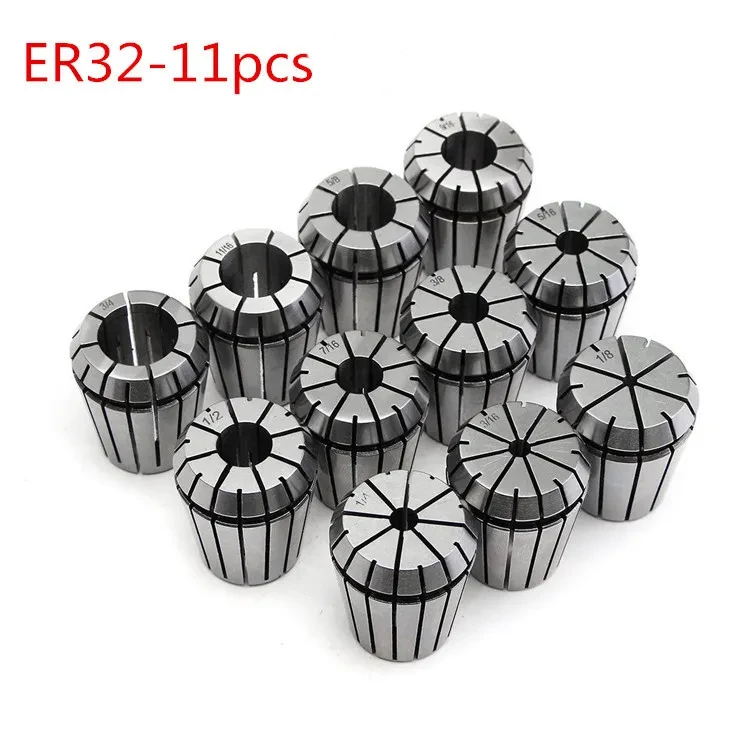

11PC, ER32 Collet Set: 1/8-3/4 by 16th (1/8, 3/16, 1/4, 5/16, 3/8,
7/16, 1/2, 9/16, 5/8, 11/16, 3/4)

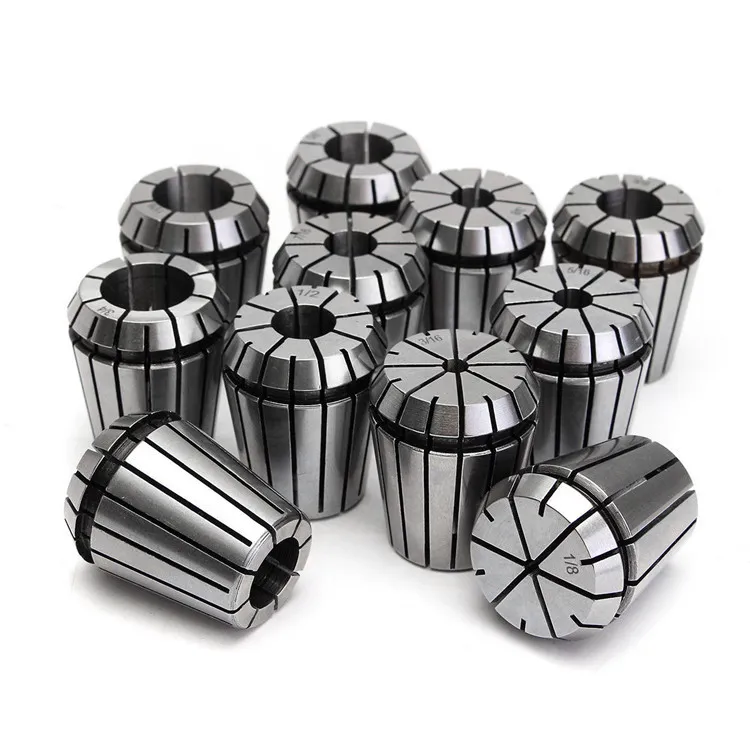

All Collets are Made of high quality alloy spring steel. 0.0005 accuracy
Hardened and precision ground

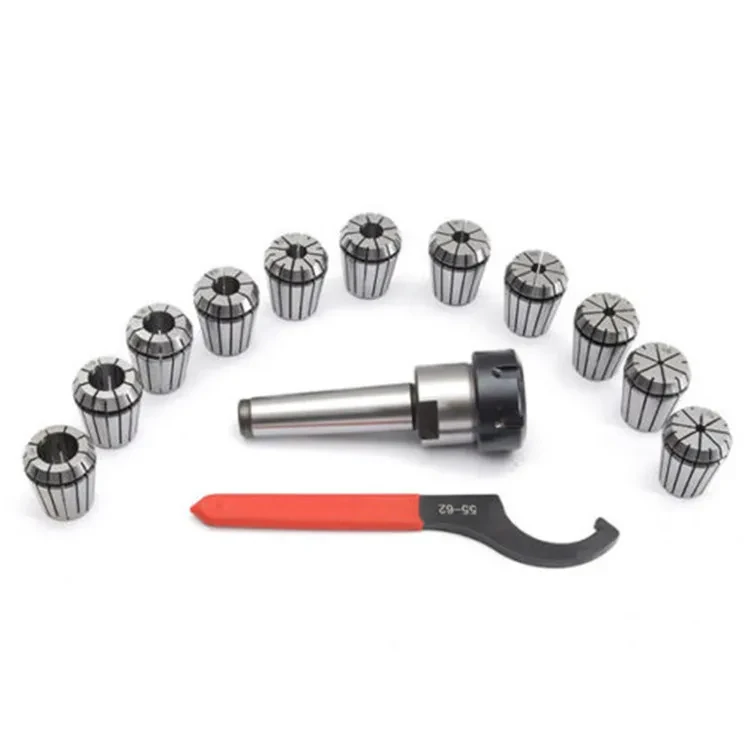

1 PC MT3 Shank ER32 collet chuck. Draw bar threads 1/2 x 13
1 PC ER32 Spanner

Packing list：

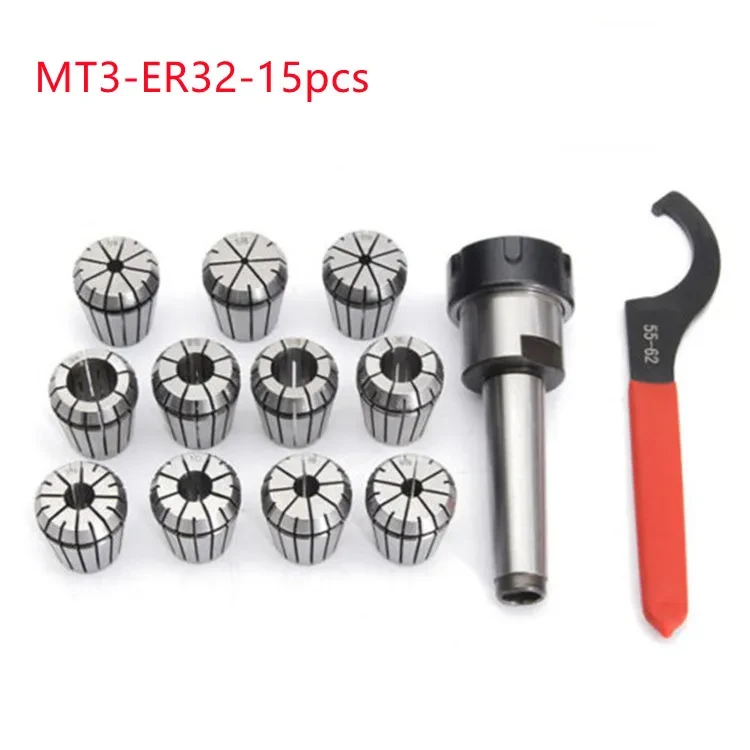

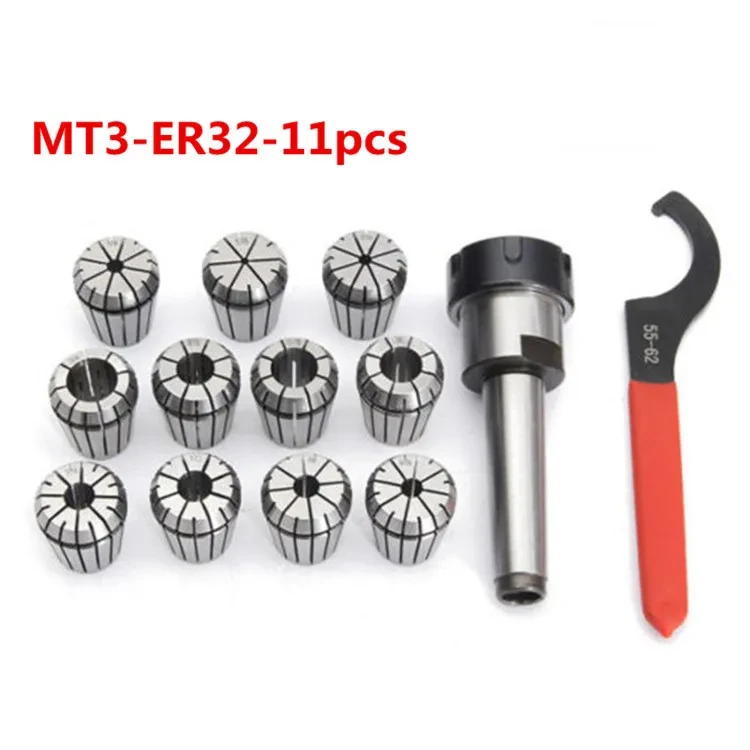

11pcs milling tool holder or 15pcs milling tool holder
