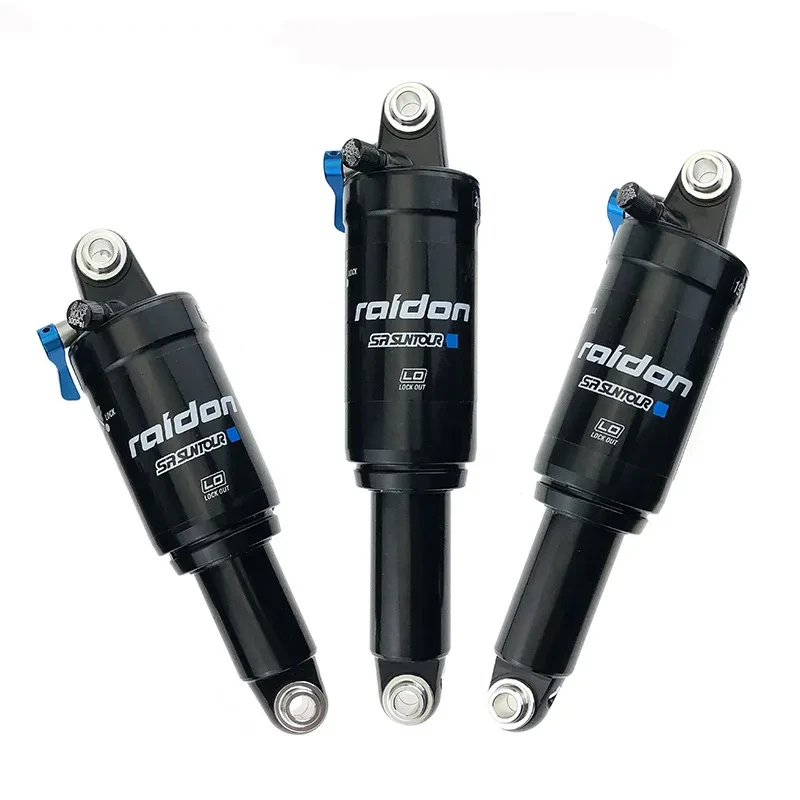

RAIDON Rear Air Shock Absorber for XC & Trail Mountain Bikes

RAIDON Rear Air Shock Absorber for XC & Trail Mountain Bikes

The RAIDON rear air shock absorber is designed for XC and trail mountain bikes, offering superior damping performance and adjustable air pressure to suit your riding style. With advanced unair technology, it features a fixed hydraulic speed and rebound ratio, delivering consistent performance across various terrains. Its improved air valve angle allows precise tuning for different leverage ratios, ensuring a smooth and controlled ride.

Constructed from high-quality metal, this ultra-light shock absorber balances strength and weight. Available in three sizes—165×38mm, 190×51mm, and 200×57mm—it weighs only 256g, 279g, and 290g respectively. The 12.7mm mounting hole inner diameter ensures easy installation, while the adjustable air chamber spacer allows fine-tuning for optimal compression and rebound behavior.

Perfect for serious riders seeking reliable performance on XC and trail rides, this shock absorber enhances bike stability, reduces fatigue, and improves overall handling. Its sleek black finish not only looks premium but also resists wear and corrosion, making it a durable upgrade for your mountain bike setup.

Product information :
Model: RAIDON
Applicable: XC/Trail
Colour: Black

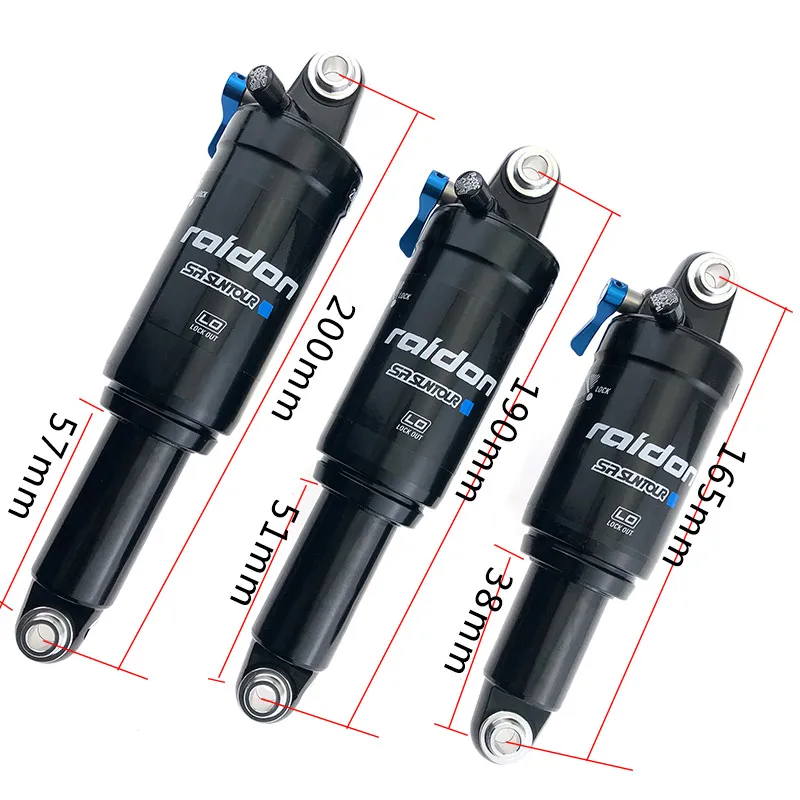

Length x stroke:

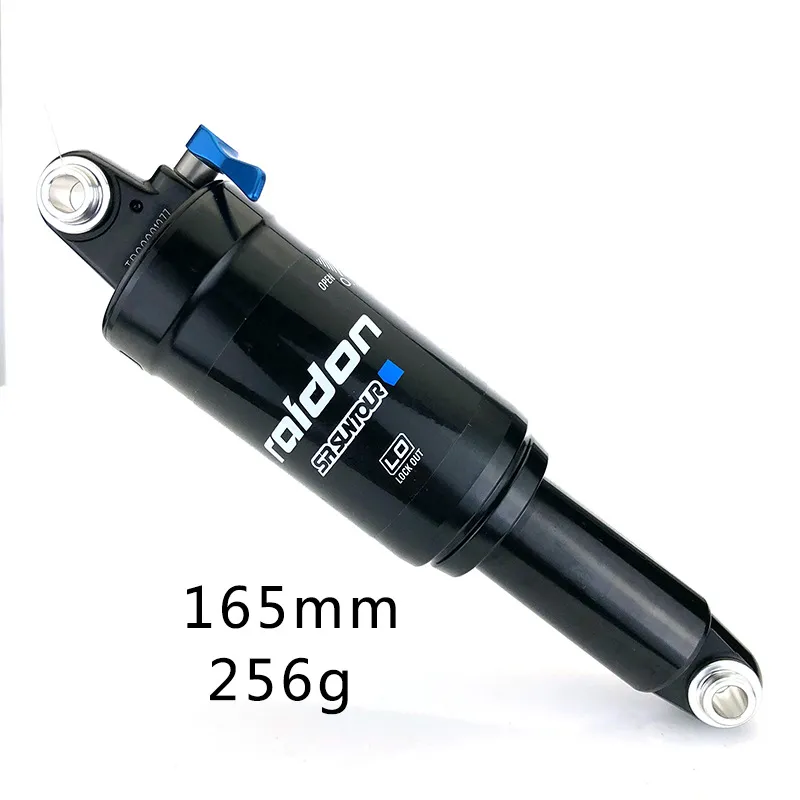

165×38mm (6.49×1.49in)

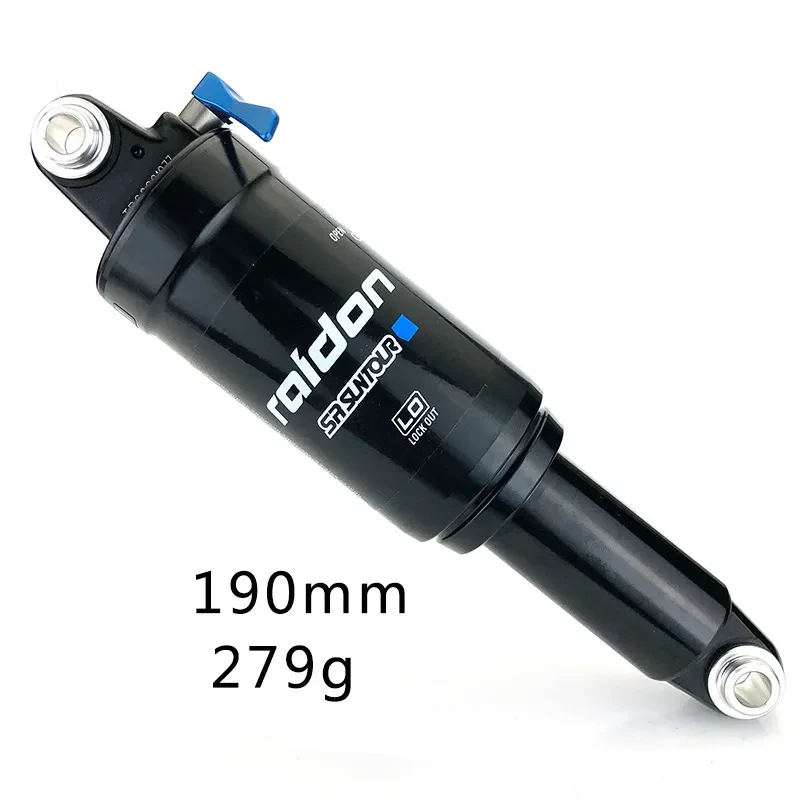

190×51mm (7.48×2.00in)

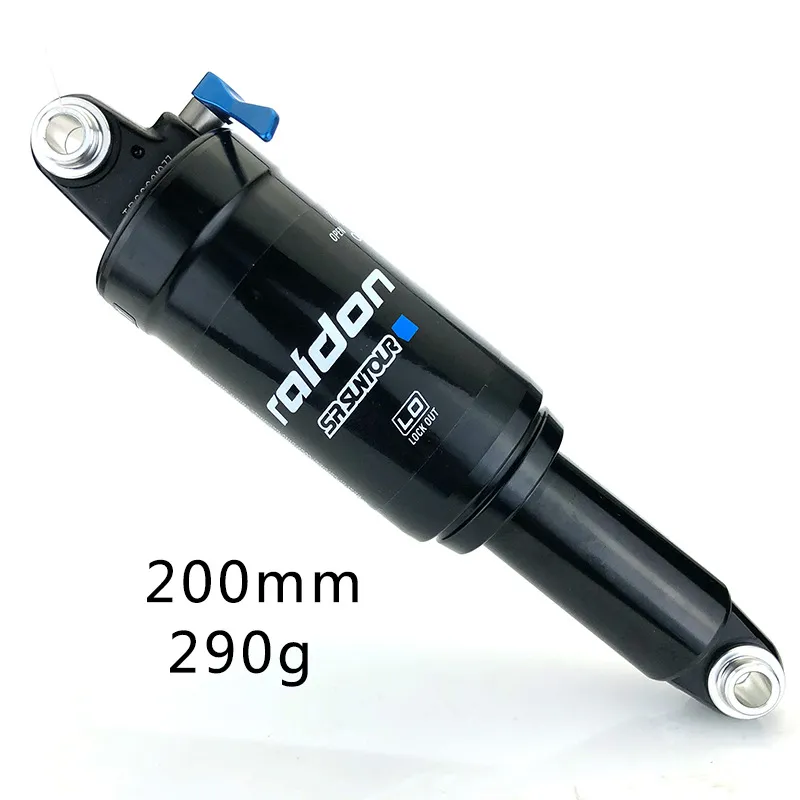

200×57mm (7.87×2.24in)
Weight: 256g for 165MM, 279g for 190MM, 290g for 200MM (ultra light)
Mounting hole inner diameter: 12.7mm
material: metal

Improved Air Valve Locking Angle Hydraulic Speed & Fixed Rebound unair design with a fixed ratio between 2.5 and 2.7 Locking Hydraulic Speed/Fixed rebound Improved air angle valve by adjusting the size of the external air chamber spacer to accommodate The air volume can be adjusted to different leverage ratios.

Packing list:
Mountain bike shock absorber*1
