Triple-Row LED Tailgate Signal Bar for Pickup Trucks (3-Color)

Triple-Row LED Tailgate Signal Bar for Pickup Trucks (3-Color)

This triple-row LED tailgate signal bar is engineered to enhance pickup truck visibility and safety with vivid red, yellow, and white illumination. Designed with high-quality FPCB material and 2835 LED beads, it delivers a bright, uniform light output that improves signaling during braking, turning, reversing, and daily driving. Its 60-inch length ensures full tailgate coverage, making your vehicle more noticeable on the road.

Built with 432 high-performance LEDs, the bar offers multiple dynamic functions including flowing turn signals, hazard flashing, running lights, and responsive braking effects. It operates on a stable 12V system, supports 3A current, and includes built-in decoding compatible with popular pickup brands such as Ford, Dodge, Chevrolet, and JMC. With a wide 180° illumination angle and a color rendering index above 80, it ensures clear, sharp lighting every time.

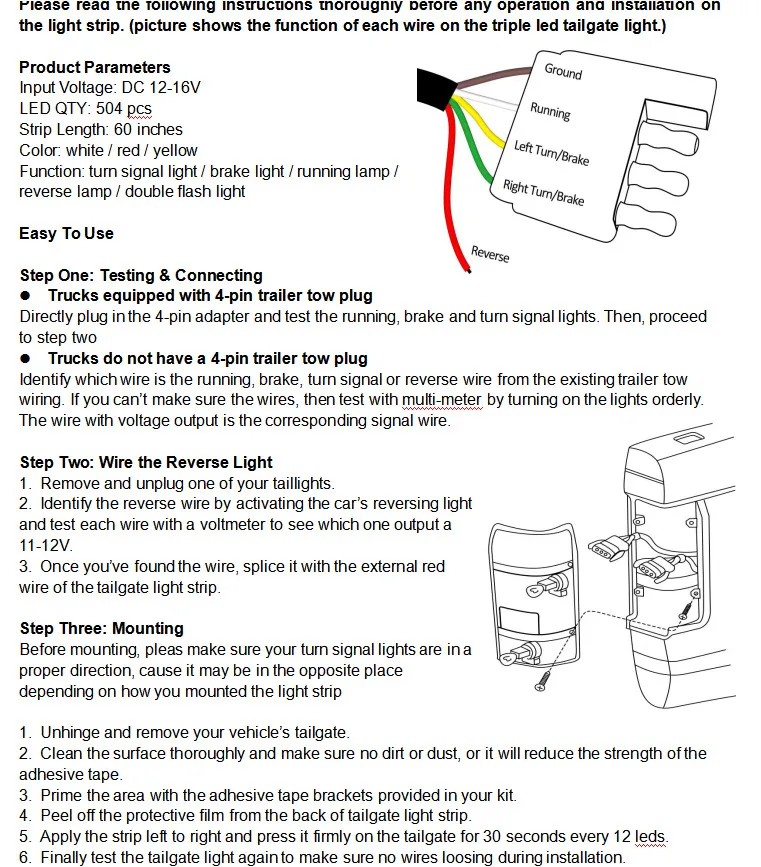

The installation is simple thanks to clearly marked wiring: a red wire for reverse positive connection, and a shared brown negative line. Designed to perform even in harsh environments, it is cold-resistant to -35°C and built to last up to 30,000 hours. With its strong build, multi-mode lighting, and universal support, this LED bar is an excellent upgrade for any pickup truck.

Material : FPCB
Type Car taillight : Model HR-2835F432D
Light source power: 10 (W)
Voltage: 12 (V)
Dimensions : 150CX22X8 (mm)
Current : 2 (A)
Service life: 30000 (hours)
Luminous flux: 1800
Light source: 2835
Color temperature: red, yellow and white
Applicable models: Pickup truck

Fit model: pickup truck
Color rendering index: ≥80
Luminous flux / brightness: 1200
Angle of illumination: 180

Three rows of three-color running water pickup box light bar

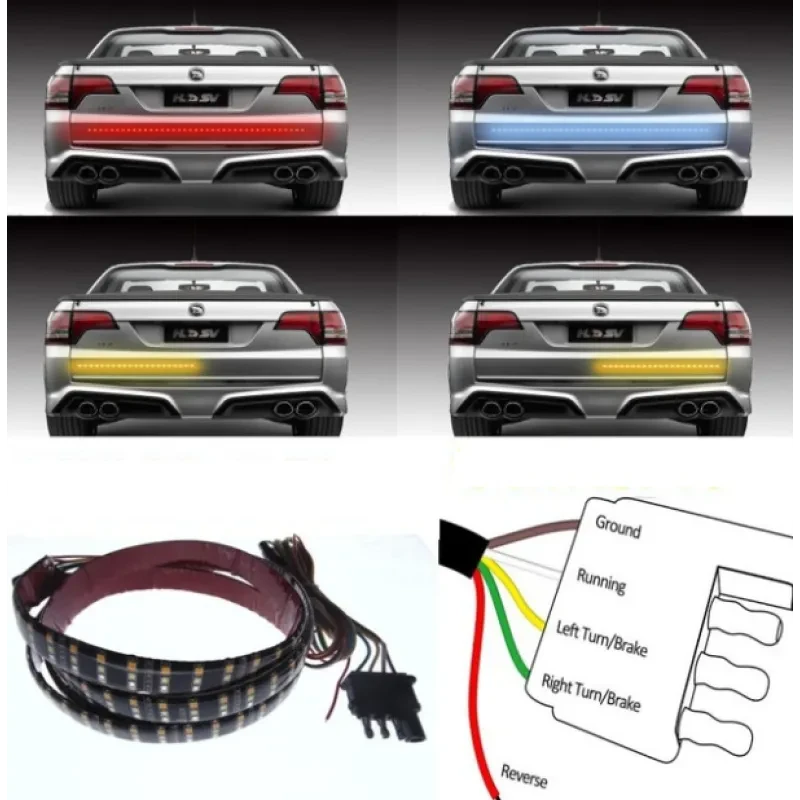

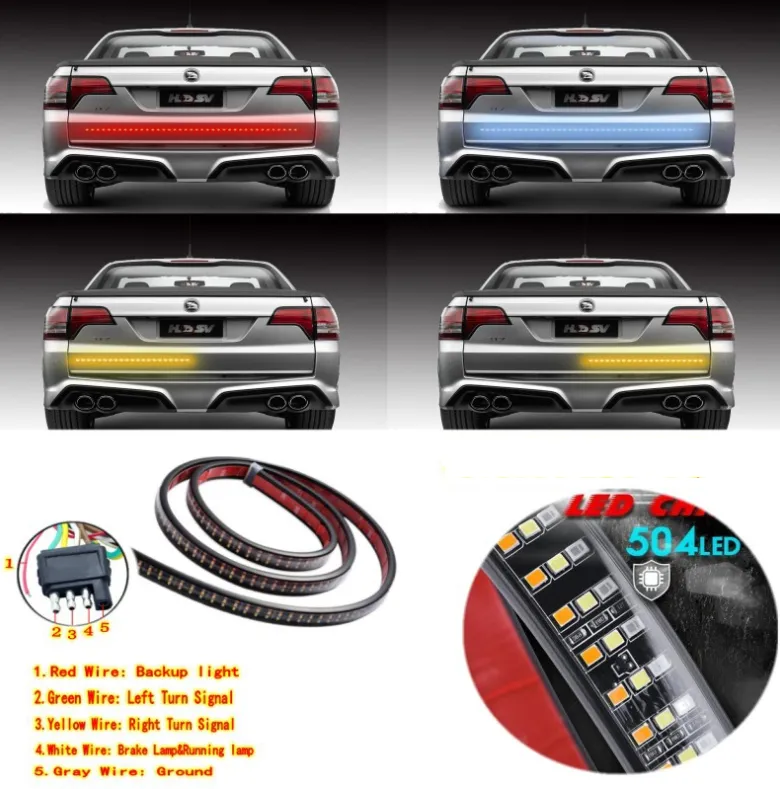

1. The red line picks up the car and reverses the positive pole. The brown line is the shared negative pole.

2. Working voltage: DC12-16V Current is 3A Packing size: 18X18X2.5CM Weight: 216G

3. Product lamp beads: 2835 Sanan Light bar parameters: 432 lights Red (144) Yellow (144) White (144)

4. Turn right (5+2) left turn water (5+3) double flash (3+2) brake (5+3+2) day line (4+5)

5. The brown wire can be connected to the 12V negative electrode. If it is not connected to the car, it will work with the positive electrode and the 1.2.3 foot.

6. Support all existing cars in the market, built-in decoding (Ford, Dodge, Chevrolet, JMC)

Cold resistance minus 35 degrees:
