The Vgate iCar Pro V2.2 OBDII BLE 4.0 Bluetooth Scanner is a compact and powerful diagnostic tool that helps you take control of your vehicle’s health. Compatible with Android devices, this advanced OBD2 scanner supports full protocols, allowing you to quickly access and interpret engine data and fault codes. Whether you're a DIY car owner or a professional mechanic, this device makes diagnosing your car’s performance issues efficient and accurate.

With support for both generic and manufacturer-specific diagnostic trouble codes (DTCs), it can read, interpret, and clear trouble codes while turning off the MIL (Check Engine Light). Real-time monitoring capabilities include RPM, vehicle speed, fuel trim, coolant temperature, air flow rate, and oxygen sensor voltage, giving you deep insight into your engine’s operation. It features over 3,000 code definitions and delivers live data directly to your smartphone via Bluetooth 4.0.

Designed for ease of use, the Vgate iCar Pro fits securely into your vehicle’s OBDII port and connects seamlessly via a wide range of OBD2-compatible apps. Whether you’re troubleshooting problems, optimizing fuel economy, or monitoring engine parameters, this tool puts professional-grade diagnostics in your pocket.

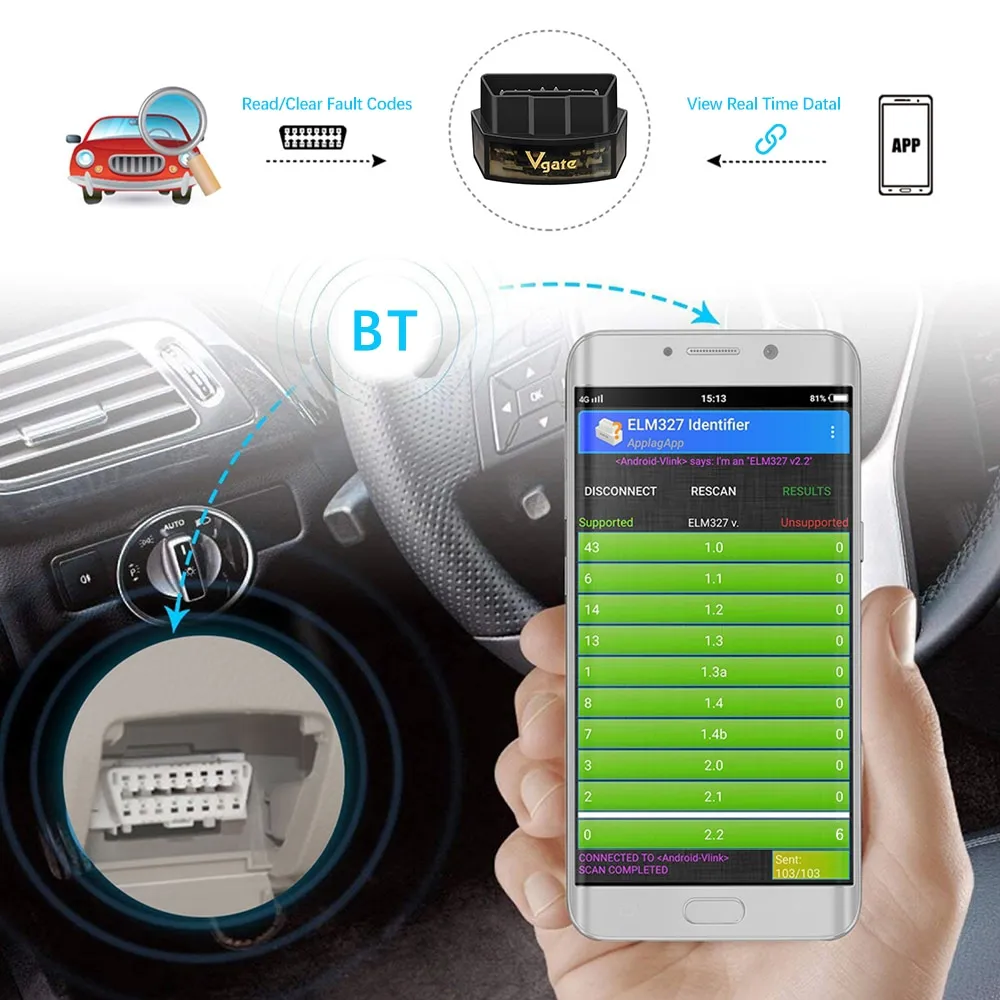

If you use Bluetooth 4.0 to Connected, please connect Bluetooth directly in the diagnostic APP

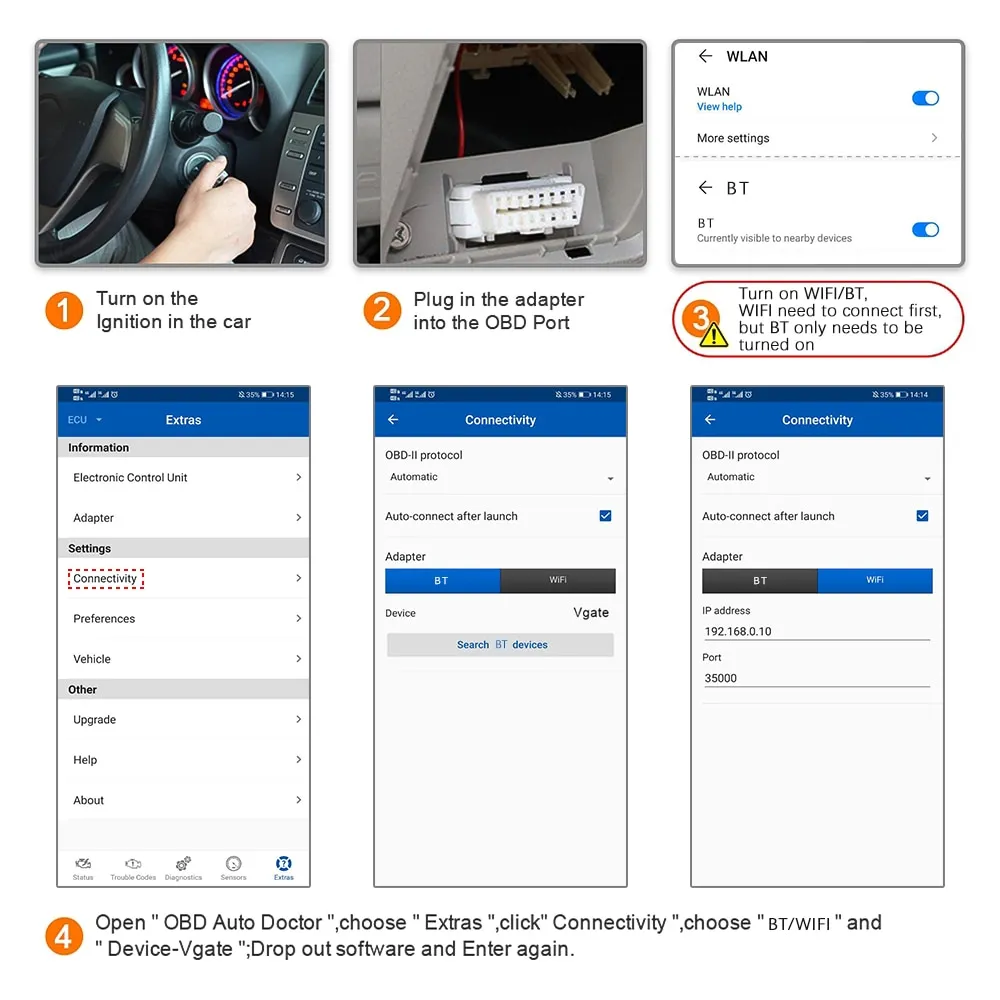

How to connect Vgate iCar Pro:

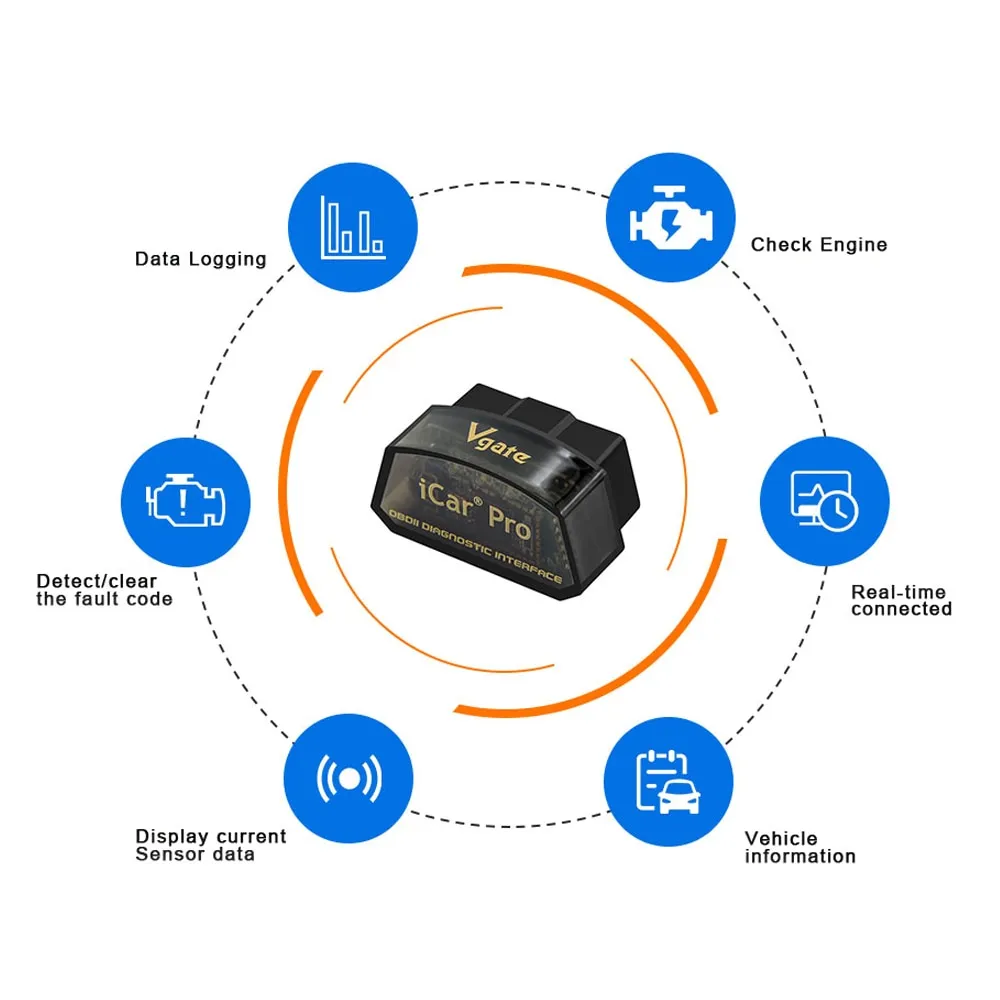

Vgate iCar Pro Features:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning. (over 3000 generic code definitions in the database).

Clear trouble codes and turn off the MIL ("Check Engine" light)

Engine RPM

Calculated Load Value

Coolant Temperature

Fuel System Status

Vehicle Speed

Short Term Fuel Trim

Long Term Fuel Trim

Intake Manifold Pressure

Timing Advance

Intake Air Temperature

Air Flow Rate

Absolute Throttle Position

Oxygen sensor voltages/associated short term fuel trims

Fuel System status

Fuel Pressure

Many othershellip

Vgate iCar Pro Specification:

Supply Voltage: 11.5V-15V

Supply Current: <200Ma

Standby Current: <30Ma (TONWON Pro = <3Ma)

Operating temperature: -40 ℃ - 85 ℃

Operating Humidity: 5% - 95% RH Non-Dewfall

Hardware version：V2.2

Supported systems：Android/IOS

Connection method：Bluetooth 3.0/4.0/WIFI

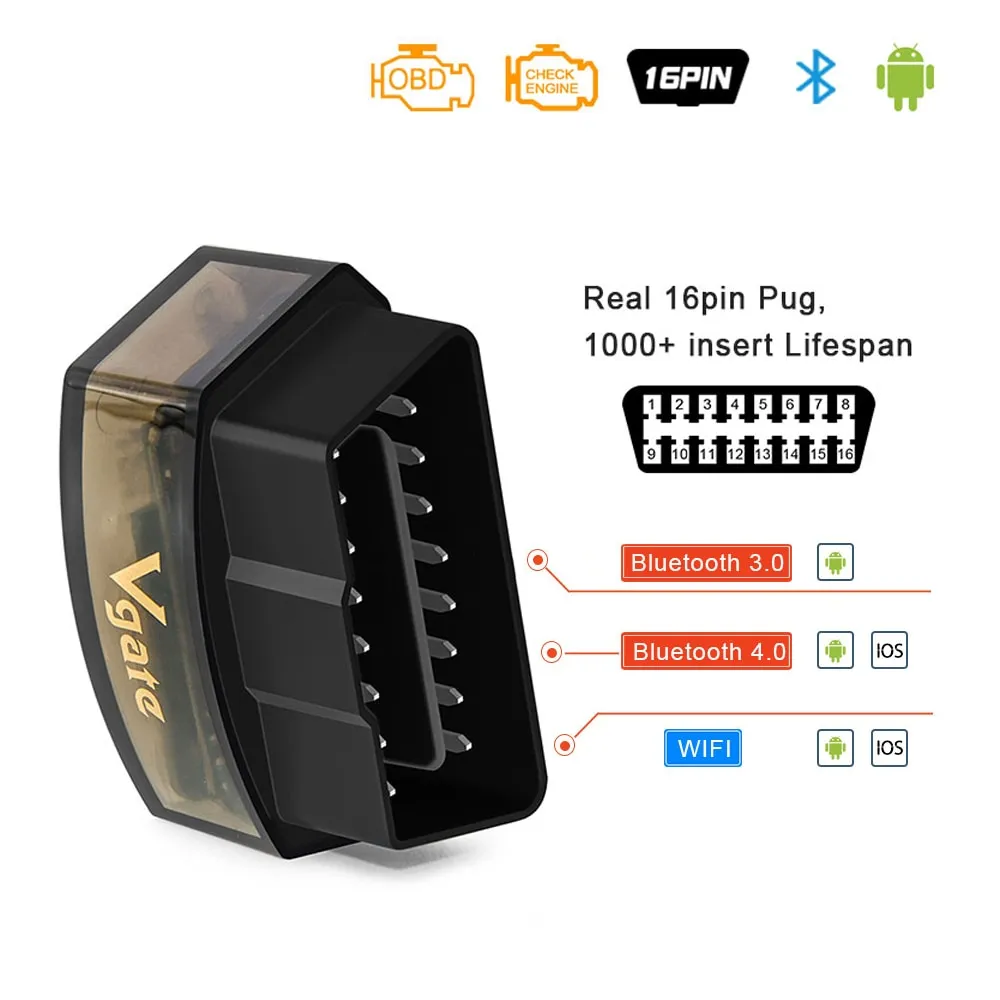

100% Original iCar Pro Connection Method：

1.Bluetooth 3.0 for Android

2.Bluetooth 4.0 for Android/IOS

3.WIFI for Android/IOS

Vgate iCar Pro OBD II adpater is a High-quality automotive scanning tool, Supports all OBD-II protocols:

SAE J1850 PWM (41.6 Kbaud)

SAE J1850 VPW (10.4 Kbaud)

ISO9141-2 (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (fast init, 10.4 Kbaud)

ISO15765-4 CAN (11bit ID, 500 Kbaud)

ISO15765-4 CAN (29bit ID, 500 Kbaud)

ISO15765-4 CAN (11bit ID, 250 Kbaud)

ISO15765-4 CAN (29bit ID, 250 Kbaud)

SAE J1939 CAN (29bit ID, 250 * Kbaud)

USER1 CAN (11 * bit ID, 125 * Kbaud)

USER2 CAN (11 * bit ID, 50 * kbaud)

* Default Settings (User Adjustable)

1 x Vgate iCar Pro OBDII

1 x User manual
