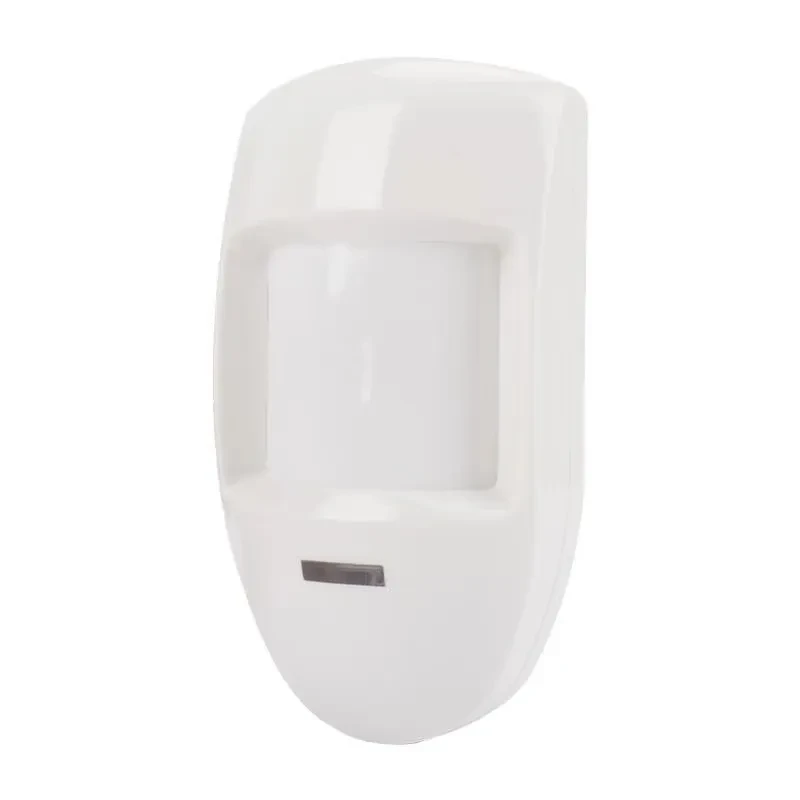

Wired PIR Motion Sensor – Wall Mounted Infrared Alarm for Home Security

Wired PIR Motion Sensor – Wall Mounted Infrared Alarm for Home Security

Upgrade your property’s protection with this Wired PIR Motion Sensor, a high-performance passive infrared detector designed to monitor movement and trigger alarms in real-time. With a 120° detection angle and a range of 6–10 meters, it’s an excellent choice for homes, banks, supermarkets, and schools. This wall-mounted unit uses NC (Normally Closed) alarm mode to seamlessly integrate with existing wired alarm systems.

Operating on 9–16V DC, the sensor is energy-efficient with a low quiescent current of just 15μA and an alarm current of 17mA. Built to withstand extreme temperatures ranging from -10°C to 60°C, it delivers consistent performance even in harsh environments. Its compact 100g body and clean design make it unobtrusive, while the reliable wired communication mode ensures stable connectivity with your security system.

Whether you're reinforcing your residential security or enhancing surveillance in commercial spaces, this infrared motion detector is a smart, cost-effective solution. It comes with easy-to-follow instructions for a quick wall-mounted installation, making it ideal for both professionals and DIY users looking for dependable perimeter protection.

Product information:
Working voltage:
9—16VDC（V）
Alarm current: 17 (mA)
Detection angle: 120
Quiescent current: 15 (uA)
Working temperature: - 10 - 60 (℃)
Detection distance: 6-10 (m)
Scope of application: household, supermarket, school, bank
Type: infrared alarm detector

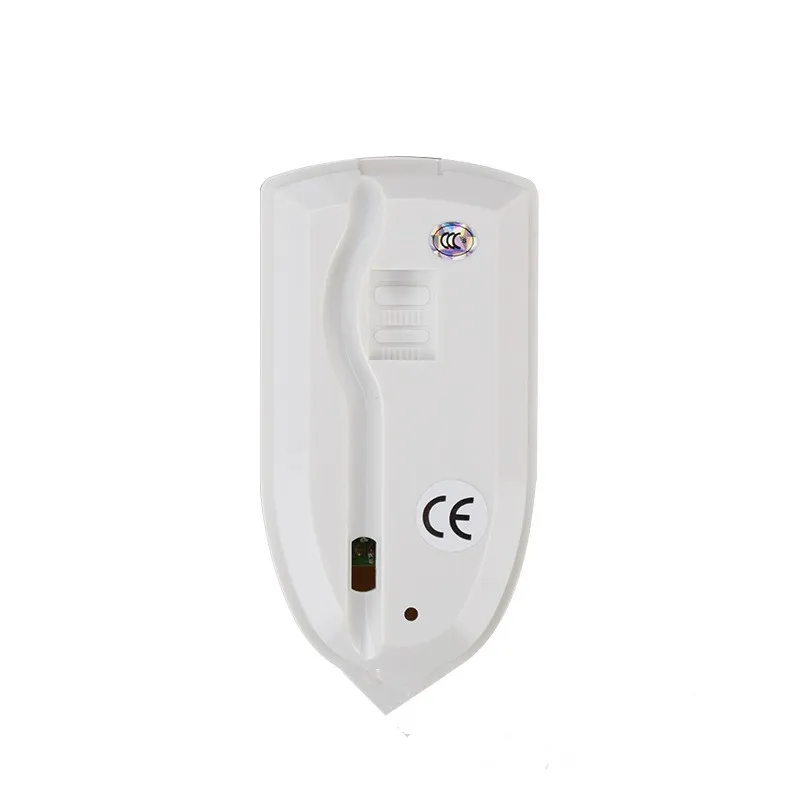

Installation method: wall-mounted
Communication mode: wired
Weight: 100 (g)
Alarm mode: NC

Packing list:

Infrared detector X1 Instruction X1
