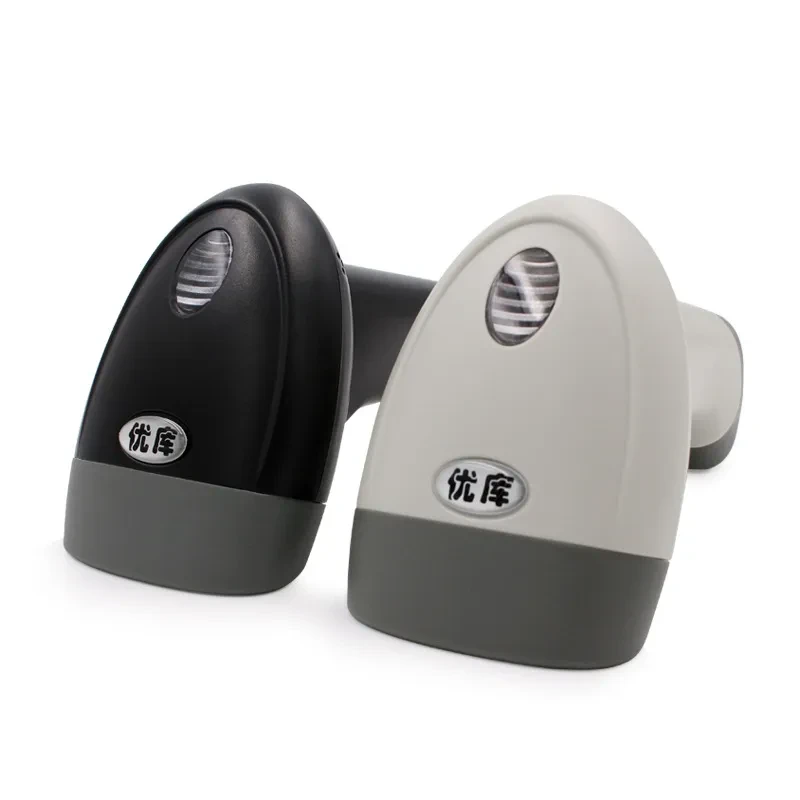

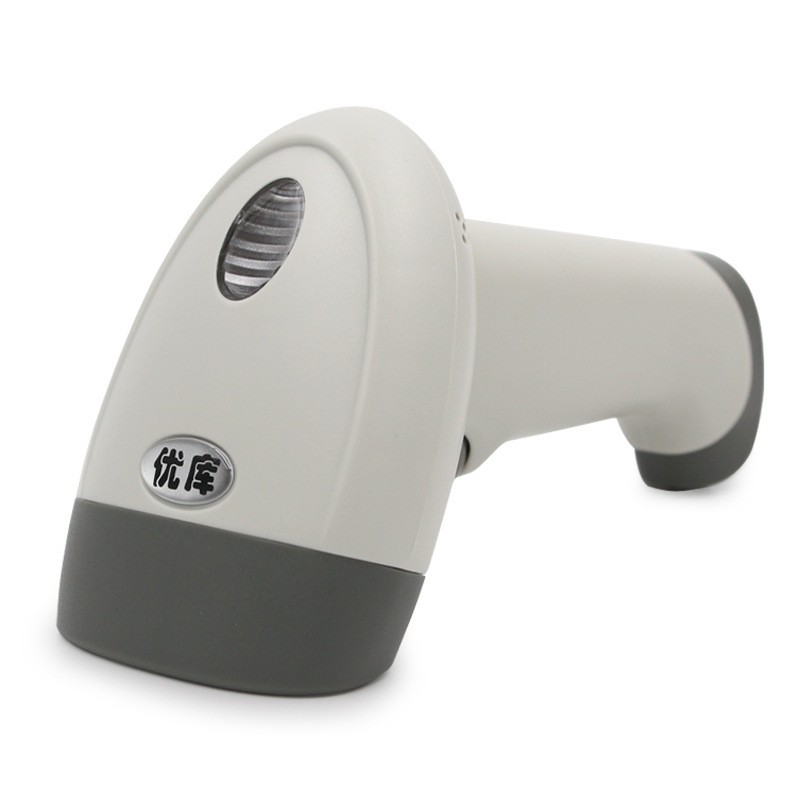

Youku M2 Red Light Barcode Scanner

Youku M2 Red Light Barcode Scanner – USB 1D Image Reader for Payments

The Youku M2 Red Light Barcode Scanner is a high-performance USB 1D image scanner designed for fast and accurate barcode recognition. It supports Alipay and WeChat QR code scanning, making it ideal for retail stores, supermarkets, restaurants, and other point-of-sale environments. Its red light scanning engine ensures precise reading even in low-contrast or reflective surfaces, improving operational efficiency.

With a scan rate of up to 120 scans per second, the M2 barcode reader is built for high-traffic usage. It features a visible red light source at 632nm ± 3nm and can operate effectively in ambient light up to 10,000 LUX. Thanks to its IP54-rated waterproof and dustproof design, it’s durable enough to withstand daily wear, dust exposure, and even accidental drops from up to 2 meters.

This barcode scanner is plug-and-play with multiple interface options, including USB, serial port, and USB virtual serial. The built-in buzzer and bi-color LED indicators (red for power, blue for successful scan) provide real-time feedback. Whether you're processing digital payments or scanning product barcodes, the Youku M2 delivers reliability, speed, and broad compatibility with modern POS systems.

Youku M2 red light scanning gun Alipay scan code gun WeChat code payment image one-dimensional with line code scanner

Recognizable minimum contrast: 25% reflection difference

Storage humidity range: 10-95% non-condensing state
Light source type: visible red light, wavelength 632nm+-3NM
Ambient light intensity: 10000 LUX
Bar code reading speed: 120 times / sec
Interface type: usb interface, serial port, USB virtual serial port optional
Drop-proof: can withstand 2 meters of free fall

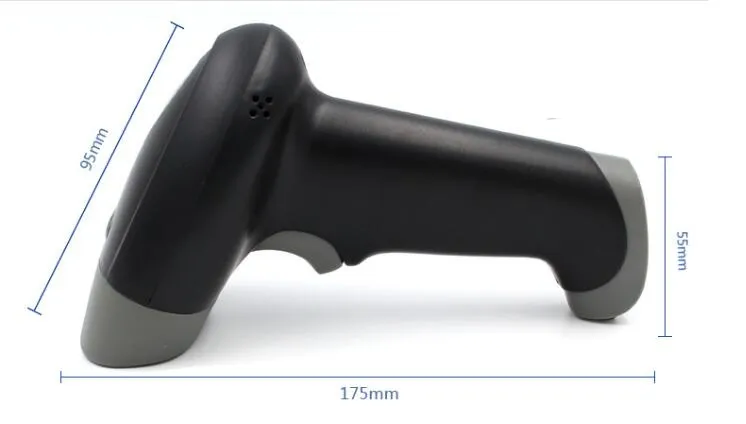

Host size: 165*80*100mm
Waterproof and dustproof: in line with IP54 standard
Operating temperature range: -20-60 degrees Celsius
Working voltage: 5V ± 0.25V
Storage temperature range: -40-85 ° C
Working current: 100MA
Operating humidity range: 10-95% non-condensing state
Electromagnetic compatibility: CE&FCC DOC COMPLIANCE

Tip: buzzer sounds prompt and red and blue bi-color light tips: red light prompt power / blue light prompt decoding successful, tone can be customized
